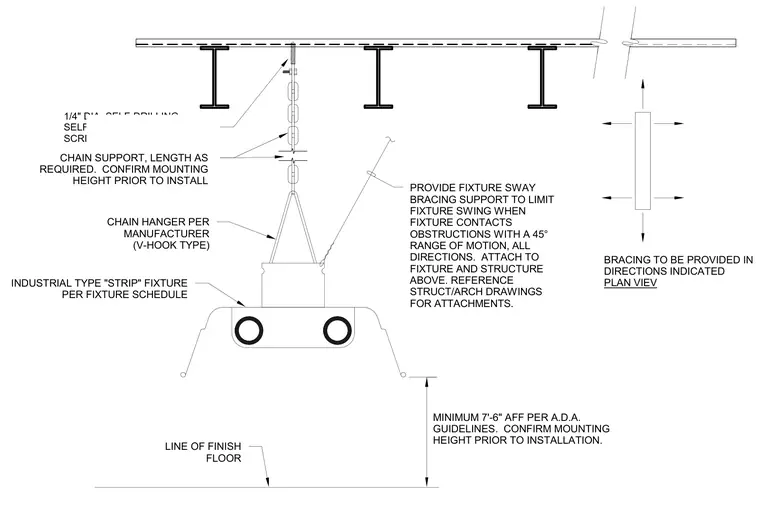

An industrial type strip fixture hangs from structural steel framing and bare metal deck above via chain supports and a V-hook type chain hanger. A quarter-inch diameter self-drilling self-tapping metal eye lag screw secures the chain to the deck. Fixture sway bracing is provided to limit movement when the fixture contacts obstructions, maintaining a forty-five degree range of motion in all directions and attached to both the fixture and the structure above. The minimum mounting height is set at seven feet six inches above the finished floor per Americans with Disabilities Act guidelines, with mounting heights confirmed prior to installation.
CHAIN HANGER PER MANUFACTURER (V-HOOK TYPE) 1/4" DIA. EYE LAG SCREW TO BARE METEL DECK CHAIN SUPPORT, LENGTH AS REQUIRED. CONFIRM MOUNTING HEIGHT PRIOR TO INSTALL MINIMUM 7'-6" AFF PER A.D.A. GUIDELINES. CONFIRM MOUNTING HEIGHT PRIOR TO INSTALLATION. INDUSTRIAL TYPE "STRIP" FIXTURE PER FIXTURE SCHEDULE PROVIDE FIXTURE SWAY BRACING SUPPORT TO LIMIT FIXTURE SWING WHEN FIXTURE CONTACTS OBSTRUCTIONS WITH A 45° RANGE OF MOTION, ALL DIRECTIONS. ATTACH TO FIXTURE AND STRUCTURE ABOVE. REFERENCE STRUCT/ARCH DRAWINGS FOR ATTACHMENTS. LINE OF FINISH FLOOR PLAN VIEV BRACING TO BE PROVIDED IN DIRECTIONS INDICATED 1/4" DIA. SELF-DRILLING SELF-TAPPING METAL EYE LAG SCREW
