Electrical · E-STR2Y

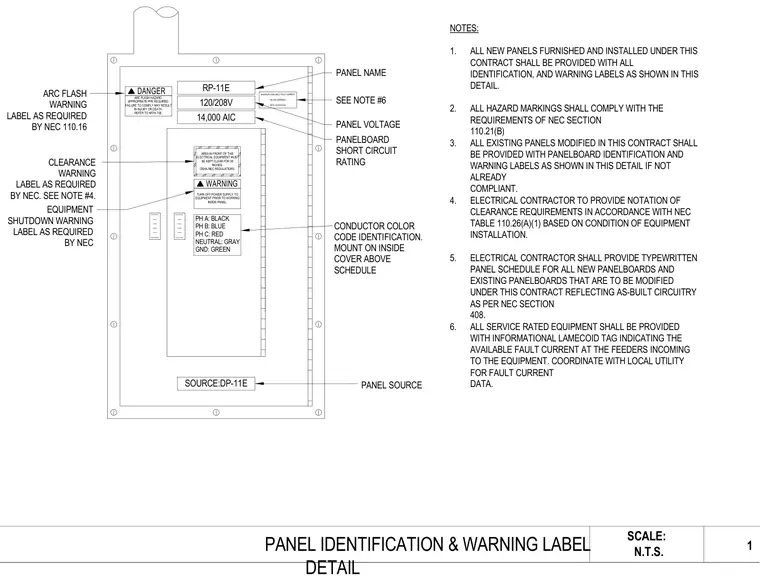

Panel Identification and Warning Label Detail

About this detail

This electrical detail specifies the required placement of identification and warning labels on the inside cover of panelboards, including arc flash, clearance, and equipment shutdown warnings per NEC requirements. It establishes panel voltage ratings, short circuit interrupting capacity, and feeding source designations alongside conductor color code identification for black, blue, red, gray, and green wires. Notes mandate typewritten panel schedules, hazard markings, and available fault current lamicoid tags for service-rated equipment.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
