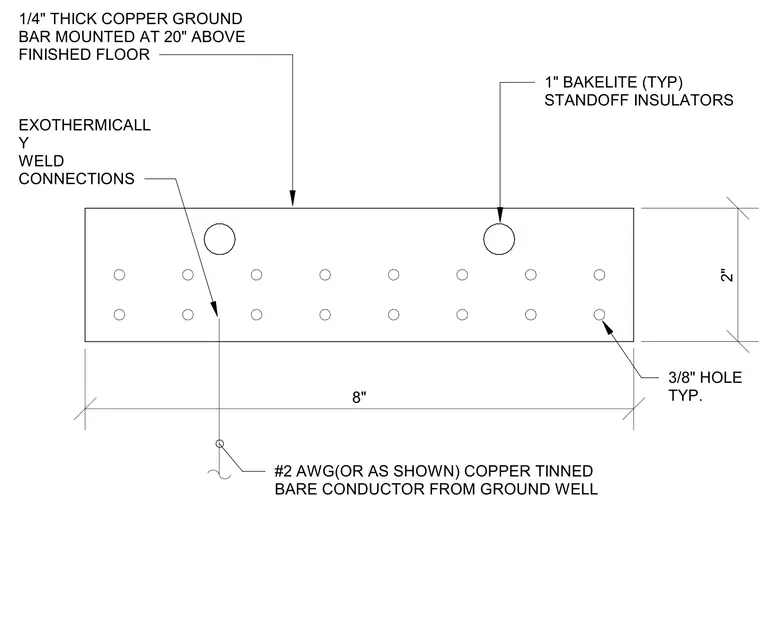

A quarter-inch thick copper ground bar is mounted at twenty inches above the finished floor on one-inch bakelite standoff insulators. The bar measures eight inches in width by two inches in height and features three-eighths-inch typical drilled holes. A number two American Wire Gauge copper tinned bare conductor from the ground well connects to the bar via exothermic weld connections.
8" 2" #2 AWG(OR AS SHOWN) COPPER TINNED BARE CONDUCTOR FROM GROUND WELL EXOTHERMICALL Y WELD CONNECTIONS 1/4" THICK COPPER GROUND BAR MOUNTED AT 20" ABOVE FINISHED FLOOR 1" BAKELITE (TYP) STANDOFF INSULATORS 3/8" HOLE TYP.
