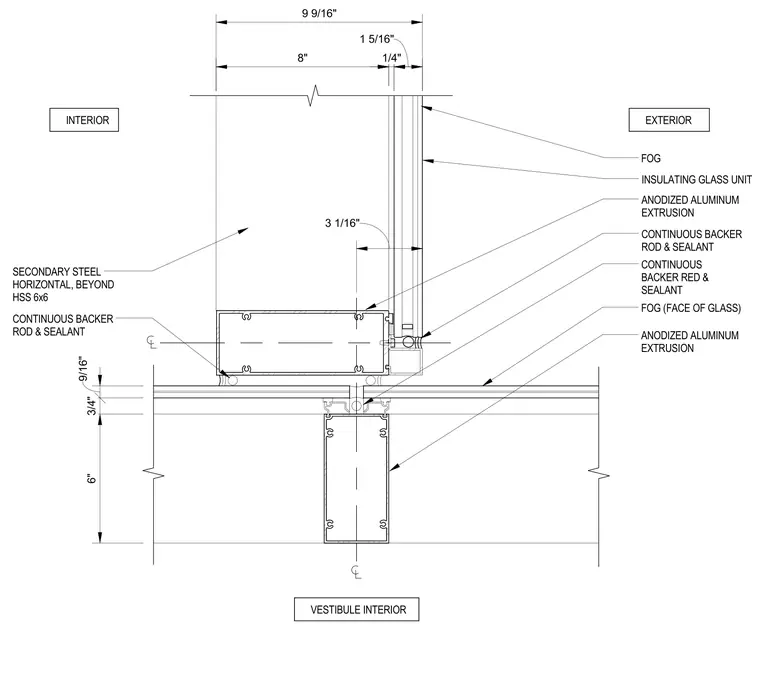

An insulating glass unit is set against anodized aluminum extrusions, sealed with continuous backer rods and sealant at the face of glass. The aluminum framing assembly connects to a secondary steel horizontal hollow structural section measuring 6x6 located beyond. Continuous backer rod and sealant joints are detailed throughout the interior and exterior interface junctions.
ANODIZED ALUMINUM EXTRUSION CONTINUOUS BACKER ROD & SEALANT FOG (FACE OF GLASS) INSULATING GLASS UNIT ANODIZED ALUMINUM EXTRUSION CONTINUOUS BACKER ROD & SEALANT FOG 1 5/16" 8" 9 9/16" SECONDARY STEEL HORIZONTAL, BEYOND HSS 6x6 CONTINUOUS BACKER RED & SEALANT 1/4" 9/16" 3/4" 6" VESTIBULE INTERIOR EXTERIOR INTERIOR 3 1/16"
