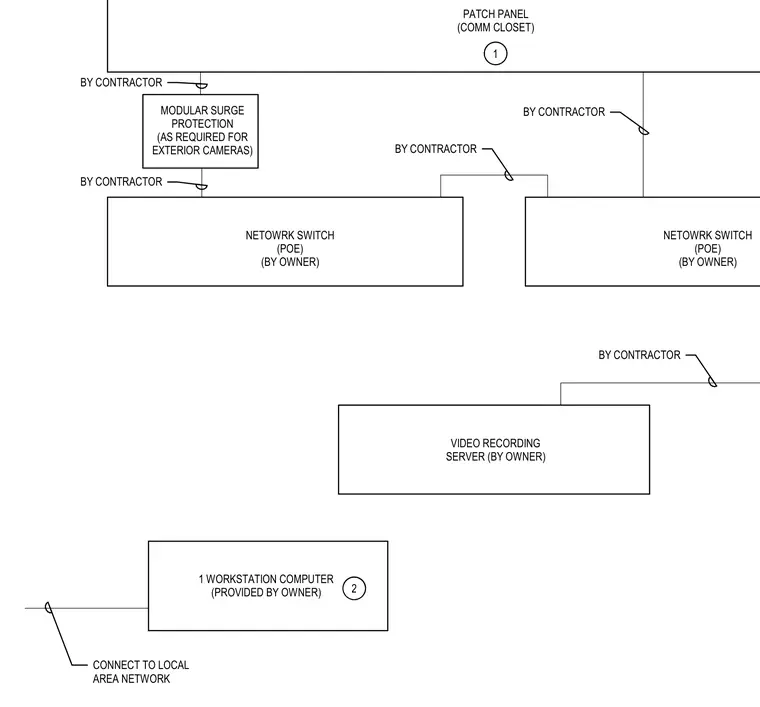

The surveillance camera system architecture connects a workstation computer to a local area network and a video recording server. Power over Ethernet network switches distribute data signals throughout the facility while patch panels in the telecommunication closet tie the network together. Modular surge protection is provided as required for exterior cameras.
1 WORKSTATION COMPUTER (PROVIDED BY OWNER) CONNECT TO LOCAL AREA NETWORK VIDEO RECORDING SERVER (BY OWNER) NETOWRK SWITCH (POE) (BY OWNER) MODULAR SURGE PROTECTION (AS REQUIRED FOR EXTERIOR CAMERAS) PATCH PANEL (COMM CLOSET) NETOWRK SWITCH (POE) (BY OWNER) 1 2 BY CONTRACTOR BY CONTRACTOR BY CONTRACTOR BY CONTRACTOR BY CONTRACTOR
