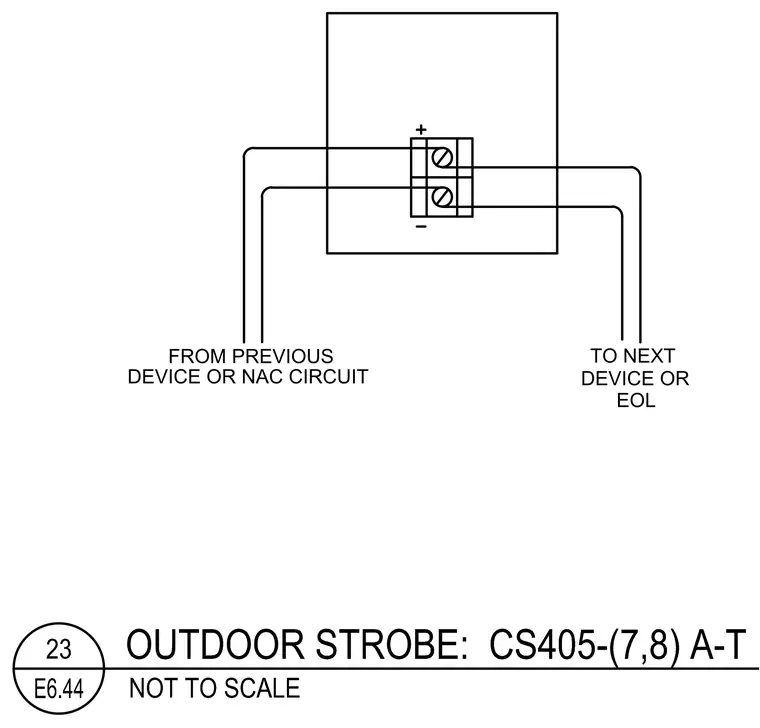

The fire alarm notification appliance circuit connects incoming wiring from the previous device or notification appliance circuit to positive and negative screw terminals. Outgoing circuit conductors continue from the same terminal blocks to the next device or end-of-line resistor.
