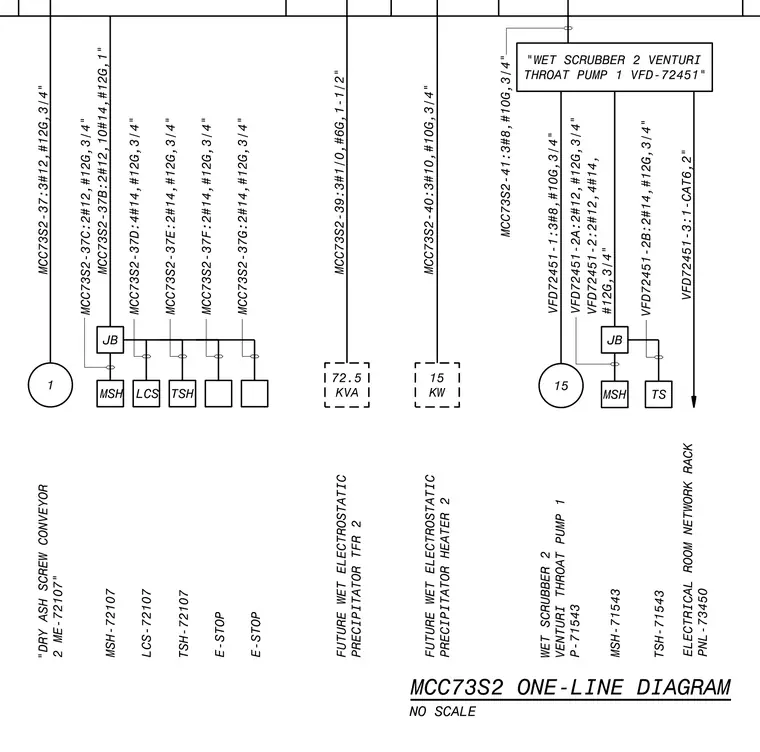

Electrical One-Line Diagram for Wet Scrubber and Conveyor Equipment

About this detail

Power distribution, motor control center feeds, and instrumentation connections for industrial mechanical equipment are detailed in this electrical one-line diagram. Circuits connected to motor control center MCC73S2 supply power and control signals to equipment including the dry ash screw conveyor, wet scrubber venturi throat pump, and future wet electrostatic precipitator heaters and TFRs. Circuit designations specify conductor sizes, conduit diameters, and control components including junction boxes, local control stations, temperature switches, and emergency stops routed from the electrical room network rack.
