Energy Storage System Disconnect Warning Plaque Detail

About this detail

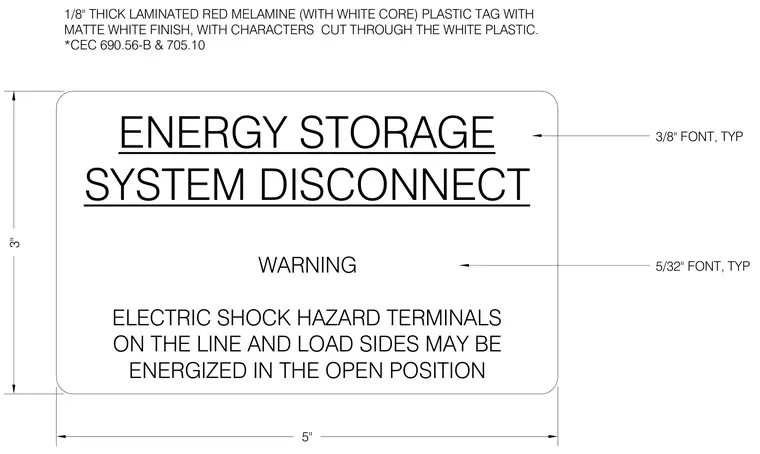

This detail specifies the fabrication and labeling requirements for an energy storage system disconnect warning plaque. The sign is constructed from one-eighth-inch thick laminated red melamine with a white core, featuring a matte white finish with characters cut through the white plastic. The main header utilizes three-eighths-inch typical font reading "ENERGY STORAGE SYSTEM DISCONNECT", while the warning message utilizes five-thirty-seconds-inch typical font stating "WARNING ELECTRIC SHOCK HAZARD TERMINALS ON THE LINE AND LOAD SIDES MAY BE ENERGIZED IN THE OPEN POSITION". The overall plaque dimensions are five inches wide by three inches high, complying with California Electrical Code requirements CEC 690.56-B and 705.10.
