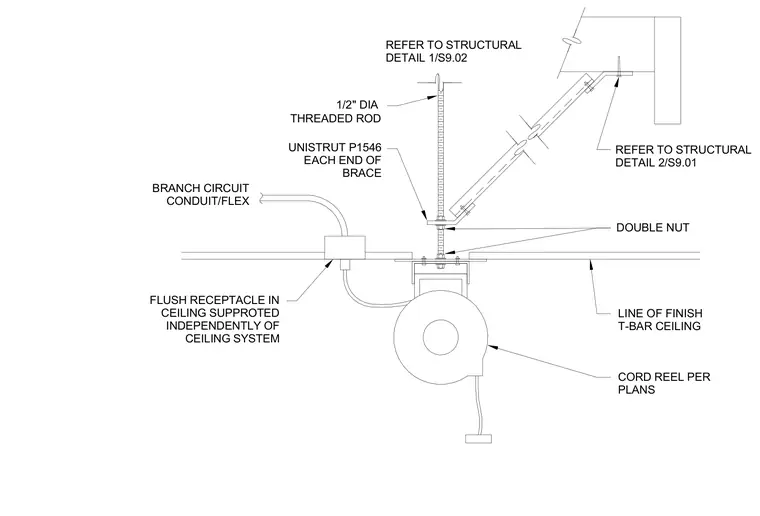

A cord drop receptacle is suspended independently of the ceiling system above the line of the finish T-bar ceiling. The assembly hangs from a one-half inch diameter threaded rod secured with double nuts and Unistrut P1546 channel framing at each end of the brace. Seismic or structural bracing connects back to the overhead structure referencing structural details for support. A branch circuit conduit and flexible metallic tubing supply power to the flush receptacle located in the ceiling.
DOUBLE NUT LINE OF FINISH T-BAR CEILING CORD REEL PER PLANS REFER TO STRUCTURAL DETAIL 2/S9.01 1/2" DIA THREADED ROD UNISTRUT P1546 EACH END OF BRACE FLUSH RECEPTACLE IN CEILING SUPPROTED INDEPENDENTLY OF CEILING SYSTEM BRANCH CIRCUIT CONDUIT/FLEX REFER TO STRUCTURAL DETAIL 1/S9.02
