A concrete foundation embeds a Ufer ground consisting of at least twenty feet or more of steel reinforcing bars not less than one-half inch in diameter. A bare copper conductor of size number four-slash-zero American wire gauge or larger runs alongside the reinforcement for a minimum length of forty feet. Exothermic welds join the conductor and reinforcing bars to form the continuous grounding electrode. The grounding conductor routes up through a one-inch schedule forty polyvinyl chloride conduit with required bushings to the main electrical ground bus bar in the main electrical room.

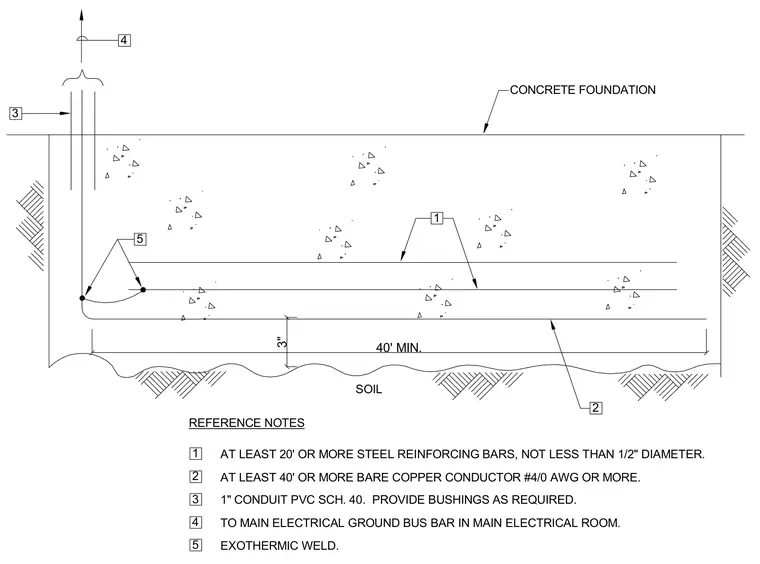

CONCRETE FOUNDATION SOIL TO MAIN ELECTRICAL GROUND BUS BAR IN MAIN ELECTRICAL ROOM. EXOTHERMIC WELD. AT LEAST 20' OR MORE STEEL REINFORCING BARS, NOT LESS THAN 1/2" DIAMETER. AT LEAST 40' OR MORE BARE COPPER CONDUCTOR #4/0 AWG OR MORE. 1" CONDUIT PVC SCH. 40. PROVIDE BUSHINGS AS REQUIRED. 5 4 3 2 1 2 1 4 3 5 40' MIN. 3" REFERENCE NOTES
