Heat Tape Ice Melt in Roof Drain

Elements

About this detail

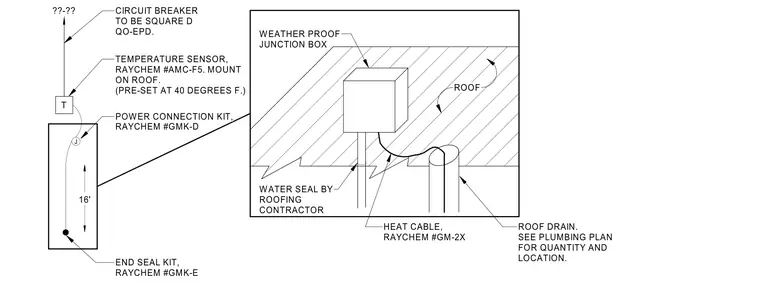

A weather-proof junction box mounts on the roof adjacent to a roof drain, with a heat cable routed from the box into the drain and finished with an end seal kit. A temperature sensor is mounted on the roof and pre-set at forty degrees Fahrenheit, connected via a power connection kit to a circuit breaker. A water seal is provided by the roofing contractor at the roof penetration.
