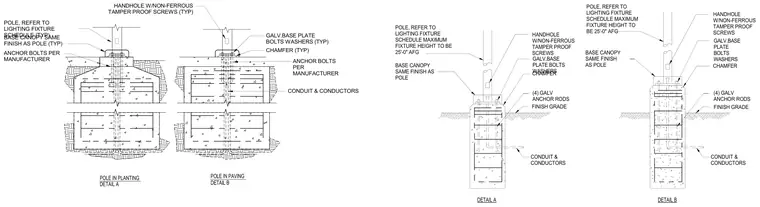

These details show light pole installations anchored to concrete foundations in both planting and paving conditions. The steel light pole features a base canopy with a matching finish, a handhole equipped with non-ferrous tamper-proof screws, and a maximum fixture height of 25 feet above finished grade. Four galvanized anchor rods secure the galvanized base plate with bolts and washers to the concrete pier, which accommodates internal conduit and conductors. The foundation top includes a chamfer edge at finished grade.
POLE IN PLANTING DETAIL A POLE IN PAVING DETAIL B DETAIL A DETAIL B FINISH GRADE CHAMFER ANCHOR BOLTS PER MANUFACTURER POLE, REFER TO LIGHTING FIXTURE SCHEDULE MAXIMUM FIXTURE HEIGHT TO BE 25'-0" AFG BASE CANOPY SAME FINISH AS POLE HANDHOLE W/NON-FERROUS TAMPER PROOF SCREWS GALV.BASE PLATE BOLTS WASHERS CHAMFER (4) GALV ANCHOR RODS POLE, REFER TO LIGHTING FIXTURE SCHEDULE MAXIMUM FIXTURE HEIGHT TO BE 25'-0" AFG BASE CANOPY SAME FINISH AS POLE HANDHOLE W/NON-FERROUS TAMPER PROOF SCREWS GALV.BASE PLATE BOLTS WASHERS CONDUIT & CONDUCTORS (4) GALV ANCHOR RODS FINISH GRADE CONDUIT & CONDUCTORS POLE, REFER TO LIGHTING FIXTURE SCHEDULE (TYP) BASE CANOPY SAME FINISH AS POLE (TYP) GALV.BASE PLATE BOLTS WASHERS (TYP) CHAMFER (TYP) CONDUIT & CONDUCTORS HANDHOLE W/NON-FERROUS TAMPER PROOF SCREWS (TYP) ANCHOR BOLTS PER MANUFACTURER
