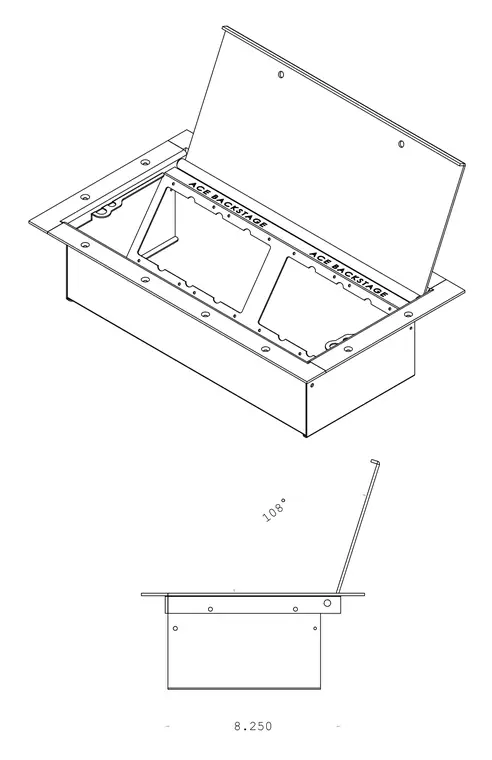

An architectural floor box assembly features a flush bezel and a hinged lid that opens to 108 degrees. The rectangular housing includes interior mounting brackets for electrical devices and a flanged perimeter for surface mounting. Dimension lines indicate a total width of 8.250 inches across the base.
