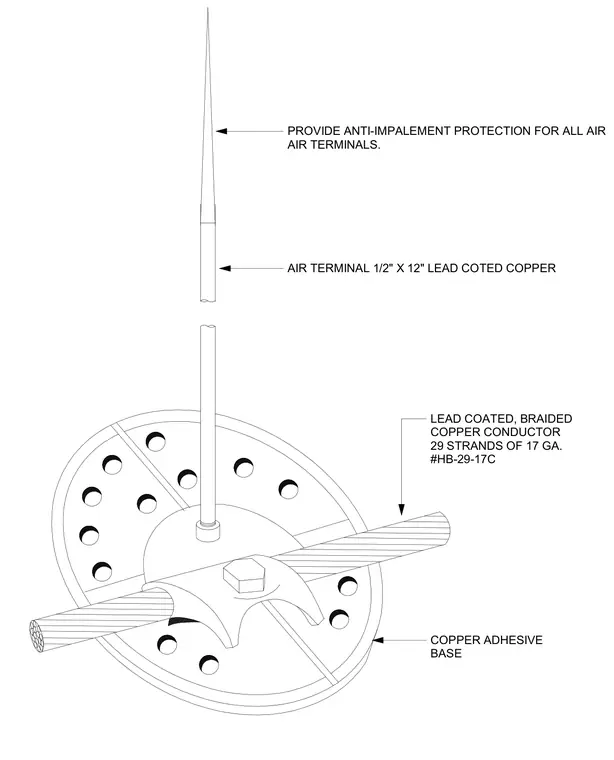

A twelve-inch lead-coated copper air terminal mounts to a circular copper adhesive base equipped with pre-punched fastener holes. A lead-coated braided copper conductor, consisting of twenty-nine strands of seventeen gauge wire, is secured across the base by a clamped fitting. Anti-impalement protection is provided for the air terminal tip.
LEAD COATED, BRAIDED COPPER CONDUCTOR 29 STRANDS OF 17 GA. #HB-29-17C AIR TERMINAL 1/2" X 12" LEAD COTED COPPER COPPER ADHESIVE BASE PROVIDE ANTI-IMPALEMENT PROTECTION FOR ALL AIR AIR TERMINALS.
