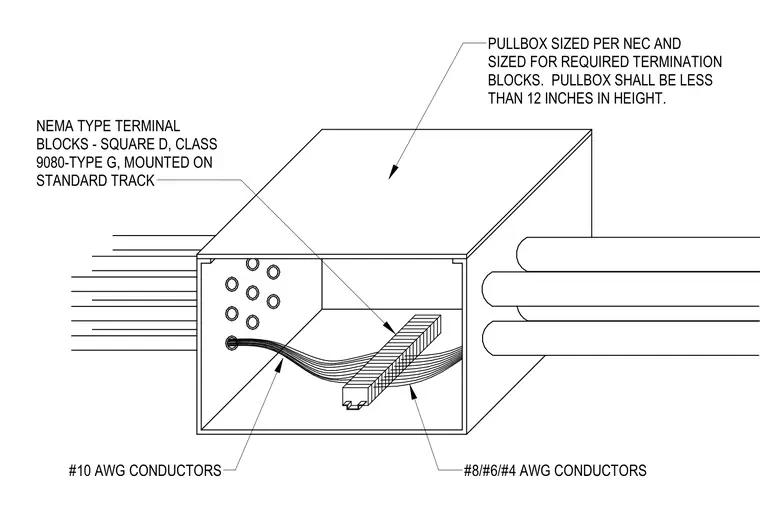

This assembly consists of a pull box sized according to National Electrical Code requirements and the necessary termination blocks, with a total height restricted to less than twelve inches. Inside the enclosure, Square D Class 9080-Type G NEMA-rated terminal blocks are mounted on a standard track. Number 10 American Wire Gauge conductors enter the box and connect to the terminal blocks. Number 8, 6, or 4 American Wire Gauge conductors are also terminated within the box to facilitate the required electrical connections.
