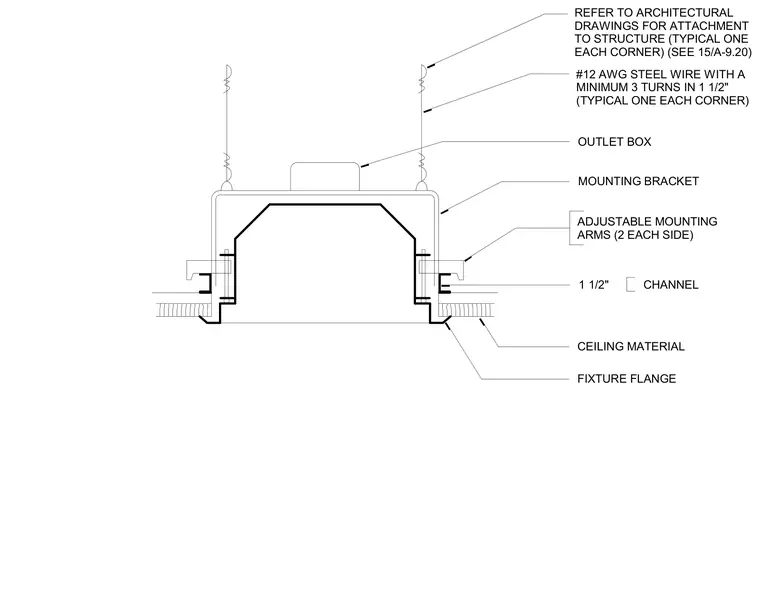

A recessed lighting fixture integrates into a suspended ceiling assembly supported by one-and-a-half-inch channels. The outlet box and mounting bracket secure the fixture housing, while two adjustable mounting arms on each side fasten to the adjacent ceiling channels. Number twelve American Wire Gauge steel wire with a minimum of three turns suspends each corner of the fixture from the overhead structure per architectural drawings.
#12 AWG STEEL WIRE WITH A MINIMUM 3 TURNS IN 1 1/2" (TYPICAL ONE EACH CORNER) OUTLET BOX MOUNTING BRACKET REFER TO ARCHITECTURAL DRAWINGS FOR ATTACHMENT TO STRUCTURE (TYPICAL ONE EACH CORNER) (SEE 15/A-9.20) CEILING MATERIAL FIXTURE FLANGE ADJUSTABLE MOUNTING ARMS (2 EACH SIDE) CHANNEL 1 1/2"
