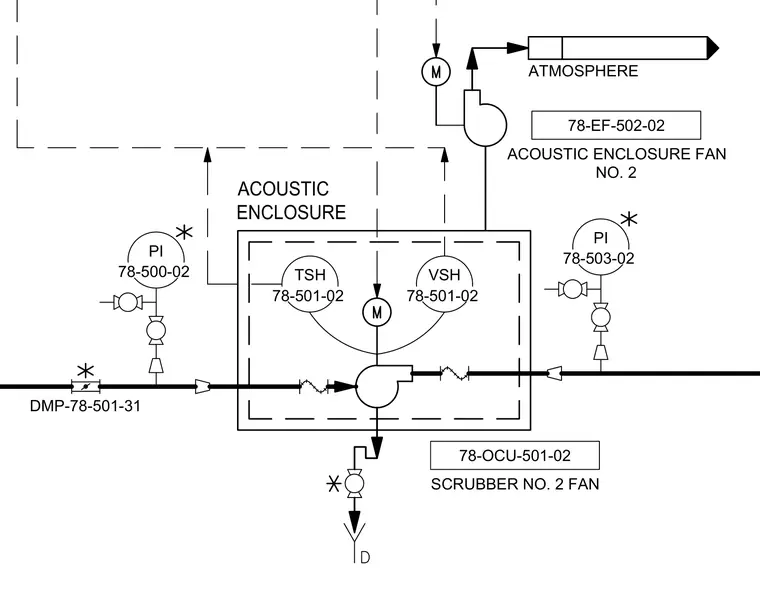

Acoustic enclosure fan number 78-EF-502-02 is detailed in a process and instrumentation schematic showing associated scrubber number 2 fan 78-OCU-501-02 and an exhaust path discharging to the atmosphere. Temperature switch high 78-501-02 and vibration switch high 78-501-02 monitor the acoustic enclosure. Pressure indicators 78-500-02 and 78-503-02 connect along process lines adjacent to damper DMP-78-501-31.
PI PI 78-OCU-501-02 SCRUBBER NO. 2 FAN 78-EF-502-02 ACOUSTIC ENCLOSURE FAN NO. 2 ATMOSPHERE DMP-78-501-31 TSH VSH
