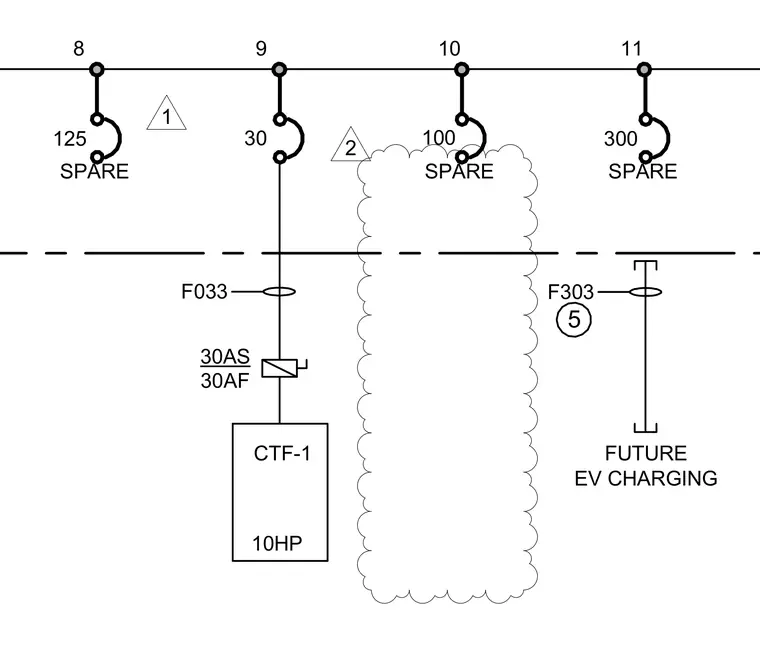

An electrical one-line diagram showing distribution circuits connected to bus numbers 8, 9, 10, and 11. Circuit 8 features a 125-ampere spare breaker. Circuit 9 feeds a 30-ampere breaker with designation F033, a 30AS/30AF switch, and a 10 horsepower CTF-1 load. Circuit 10 includes a 100-ampere spare breaker. Circuit 11 supplies a 300-ampere spare breaker alongside a future electric vehicle charging connection labeled F303.
5 125 100 8 9 10 11 30 300 SPARE F033 30AS 30AF F303 SPARE SPARE 10HP CTF-1 FUTURE EV CHARGING 1 2
