A ten-foot cable tray section is suspended overhead using threaded rods secured at each support point. Unistrut supports are positioned one foot inward from either end of the cable tray span. Washers and nuts are installed both above and below the Unistrut channel to lock the assembly in place. The wire basket tray is secured to the Unistrut per the manufacturer specifications.

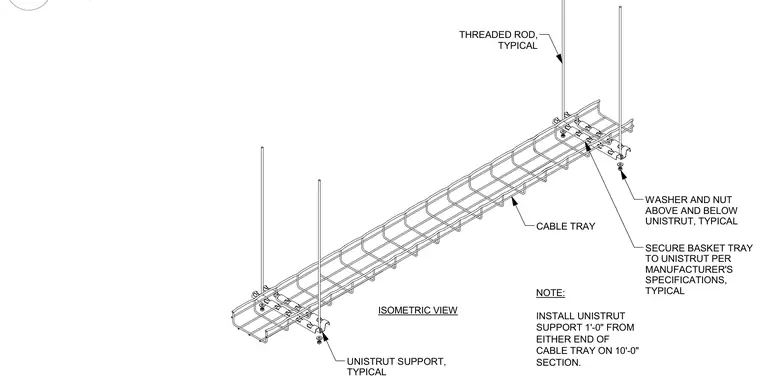

B4 ISOMETRIC VIEW NOTE: INSTALL UNISTRUT SUPPORT 1'-0" FROM EITHER END OF CABLE TRAY ON 10'-0" SECTION. UNISTRUT SUPPORT, TYPICAL CABLE TRAY THREADED ROD, TYPICAL WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS, TYPICAL NO SCALE
