A number two AWG green insulated stranded copper wire forms the peripheral ground ring, secured by a mounting base attached to the wall. A supplementary ground or unit bond using a number six AWG green insulated stranded copper wire connects to the ring via a crimp type parallel tap. The tap utilizes a Thomas and Betts Company C tap catalog number 54740 or 54730 as required.

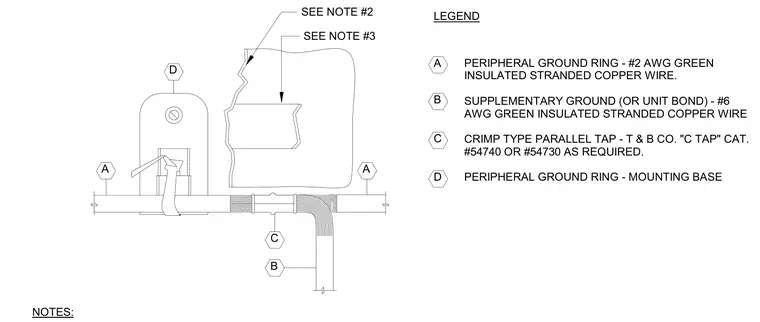

NOTES: B C A A D SEE NOTE #3 SEE NOTE #2 D C B A LEGEND PERIPHERAL GROUND RING - #2 AWG GREEN INSULATED STRANDED COPPER WIRE. SUPPLEMENTARY GROUND (OR UNIT BOND) - #6 AWG GREEN INSULATED STRANDED COPPER WIRE CRIMP TYPE PARALLEL TAP - T & B CO. "C TAP" CAT. #54740 OR #54730 AS REQUIRED. PERIPHERAL GROUND RING - MOUNTING BASE
