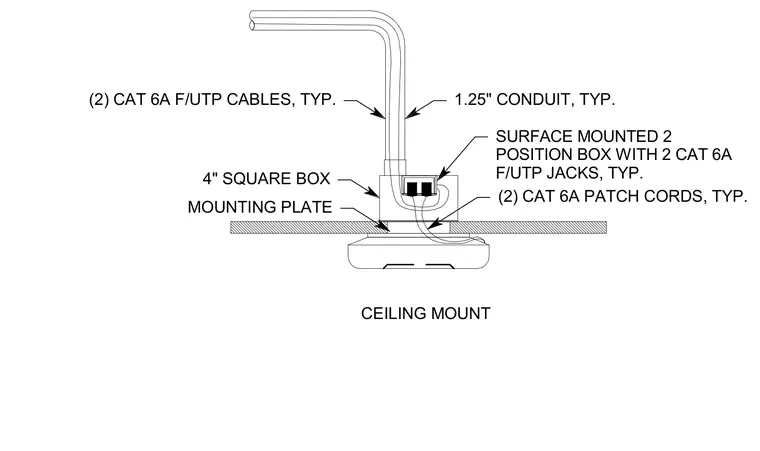

A 1.25-inch conduit feeds two Category 6A F/UTP cables down to a surface-mounted two-position box equipped with two Category 6A F/UTP jacks. The junction box secures to a 4-inch square box mounting plate at the ceiling plane. Two Category 6A patch cords route from the jacks into the mounted device below.
SURFACE MOUNTED 2 POSITION BOX WITH 2 CAT 6A F/UTP JACKS, TYP. (2) CAT 6A PATCH CORDS, TYP. CEILING MOUNT 1.25" CONDUIT, TYP. (2) CAT 6A F/UTP CABLES, TYP. 4" SQUARE BOX MOUNTING PLATE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
