Electrical Riser Diagram for Switchboard DBCL2

About this detail

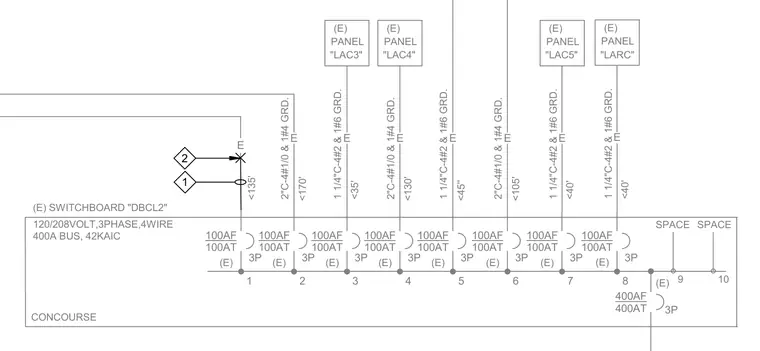

Power distribution from existing switchboard DBCL2, rated 120/208 volts, 3-phase, 4-wire, 400-ampere bus, and 42 kAIC. The switchboard feeds multiple existing panels including LAC3, LAC4, LAC5, and LARC through various conduit sizes and conductor configurations. Specifically, circuit 1 utilizes a 2-inch conduit with four #1/0 conductors and one #6 ground over a 135-foot run, while circuits 3 and 5 utilize 1-1/4-inch conduits with four #2 conductors and one #6 ground over 35-foot and 105-foot runs respectively. Circuit 2 uses a 2-inch conduit with four #1/0 conductors and one #6 ground over 170 feet, and circuits 4, 7, and 8 connect via 1-1/4-inch conduits with four #2 conductors and one #6 ground over 130-foot, 40-foot, and 40-foot runs respectively. Circuit 8 also feeds an additional 400AF/400AT 3-pole connection, and circuits 9 and 10 are designated as spare spaces.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
