Electrical · E-RVZ96

Fire Alarm Control Panel Wiring Diagram

Elements

About this detail

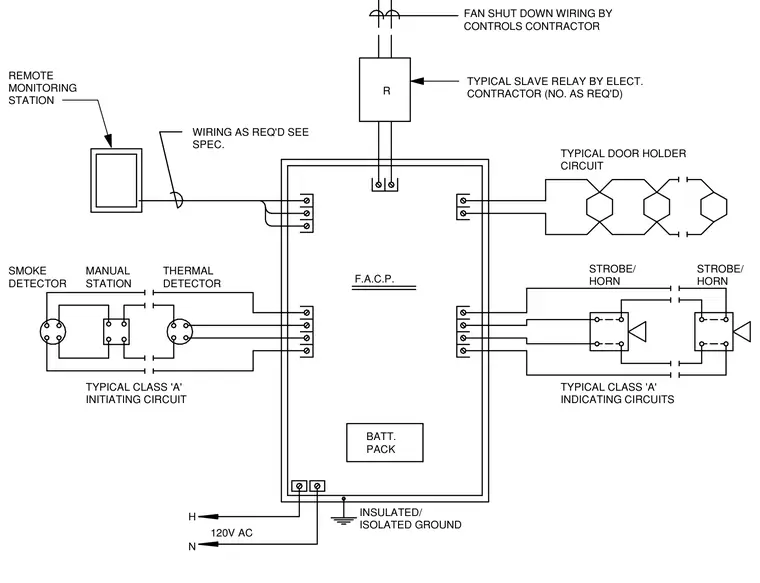

Wiring connections for a fire alarm control panel including power supply, initiating circuits, and indicating circuits. The system is powered by a one hundred twenty volt alternating current supply with an insulated and isolated ground, backed up by an internal battery pack. Typical Class A initiating circuits connect smoke detectors, manual pull stations, and thermal detectors to the control panel. Typical Class A indicating circuits connect strobe and horn notification appliances. Additional connections include typical door holder circuits, a slave relay installed by the electrical contractor with the number as required, and fan shutdown wiring provided by the controls contractor. A remote monitoring station connects via wiring sized per specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
