Standard support methods for electrical raceways ranging from one-half inch to six inches in diameter. A beam clamp or hanger clamp is attached to the structural unit according to the weight of the supported load. An all-thread rod of required size suspends a conduit hanger or supports the raceway directly. A specific note mandates that tie wire shall not be used as a component of any raceway hanger system.

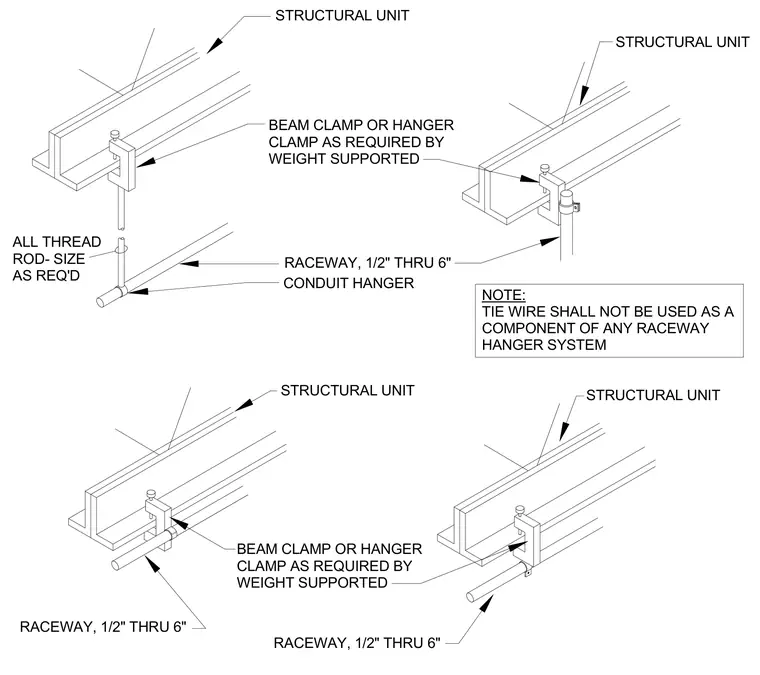

BEAM CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED STRUCTURAL UNIT ALL THREAD ROD- SIZE AS REQ'D RACEWAY, 1/2" THRU 6" CONDUIT HANGER STRUCTURAL UNIT STRUCTURAL UNIT STRUCTURAL UNIT BEAM CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED RACEWAY, 1/2" THRU 6" RACEWAY, 1/2" THRU 6" NOTE: TIE WIRE SHALL NOT BE USED AS A COMPONENT OF ANY RACEWAY HANGER SYSTEM
