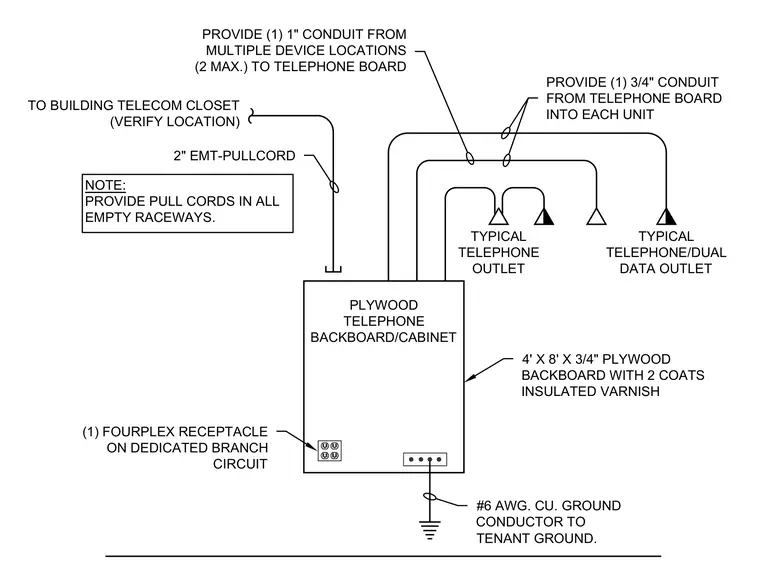

A four-foot by eight-foot by three-quarter-inch plywood backboard receives two coats of insulated varnish and serves as the mounting cabinet for tenant telecommunications. A two-inch electrical metallic tubing conduit with a pull cord connects the backboard to the building telecom closet. One-inch conduits run from multiple device locations to the telephone board, while three-quarter-inch conduits extend from the board into each individual unit. A number six American Wire Gauge copper ground conductor connects the board to the tenant ground, and a fourplex receptacle on a dedicated branch circuit provides power.
NOTE: PROVIDE PULL CORDS IN ALL EMPTY RACEWAYS. PLYWOOD TELEPHONE BACKBOARD/CABINET TO BUILDING TELECOM CLOSET (VERIFY LOCATION) (1) FOURPLEX RECEPTACLE ON DEDICATED BRANCH CIRCUIT 2" EMT-PULLCORD #6 AWG. CU. GROUND CONDUCTOR TO TENANT GROUND. PROVIDE (1) 1" CONDUIT FROM MULTIPLE DEVICE LOCATIONS (2 MAX.) TO TELEPHONE BOARD PROVIDE (1) 3/4" CONDUIT FROM TELEPHONE BOARD INTO EACH UNIT 4' X 8' X 3/4" PLYWOOD BACKBOARD WITH 2 COATS INSULATED VARNISH TYPICAL TELEPHONE OUTLET TYPICAL TELEPHONE/DUAL DATA OUTLET
