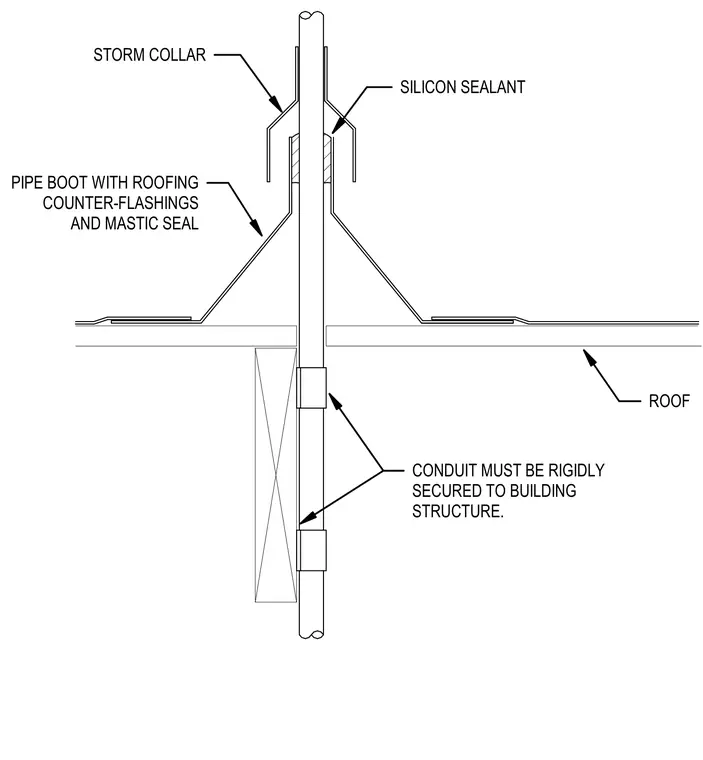

An electrical conduit penetrates the roof assembly and is rigidly secured to the building structure below the deck. A pipe boot with roofing counter-flashings and a mastic seal is installed at the roof surface. A storm collar fits around the conduit above the boot, sealed with silicon sealant.
ROOF CONDUIT MUST BE RIGIDLY SECURED TO BUILDING STRUCTURE. SILICON SEALANT STORM COLLAR PIPE BOOT WITH ROOFING COUNTER-FLASHINGS AND MASTIC SEAL
