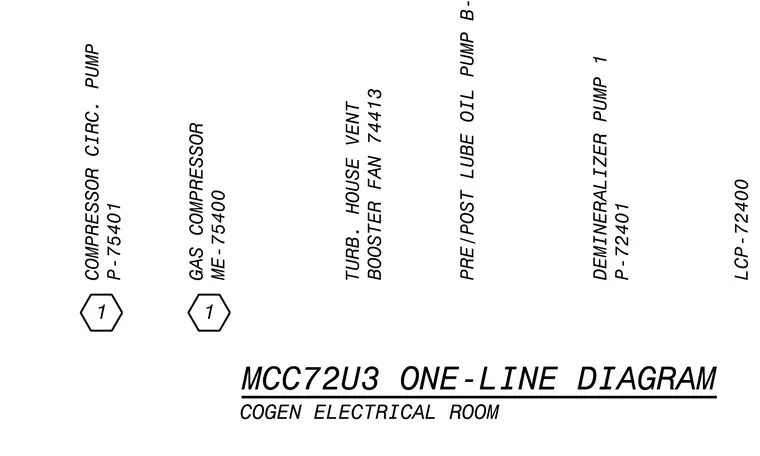

This electrical diagram outlines the one-line configuration for MCC72U3 located within the cogen electrical room. It details various connected equipment feeds including the demineralizer pump P-72401, local control panel LCP-72400, pre/post lube oil pump B-321, and the turbine house vent booster fan 74413. Additional downstream loads include the gas compressor ME-75400 and compressor circulation pump P-75401. Tagged equipment identifiers and branch circuit details are provided for coordination across the power distribution system.
MCC72U3 ONE-LINE DIAGRAM COGEN ELECTRICAL ROOM LCP-72400 DEMINERALIZER PUMP 1 P-72401 PRE/POST LUBE OIL PUMP B-321 TURB. HOUSE VENT BOOSTER FAN 74413 0 GAS COMPRESSOR ME-75400 8 COMPRESSOR CIRC. PUMP P-75401
