An emergency lighting interface connects a normal three-phase four-wire distribution panel to emergency ESN units via a power supply unit. The contractor provides one three-pole breaker connected through five number twelve AWG wires. The PP-DV power supply operates at 120 to 277 volts alternating current with dimensions of 2.33 inches high by 3.69 inches wide by 1.36 inches deep. The LUT-ELI-3PH emergency lighting interface senses line voltage from 100 to 347 volts alternating current and measures 7.75 inches high by 5.00 inches wide by 2.50 inches deep.

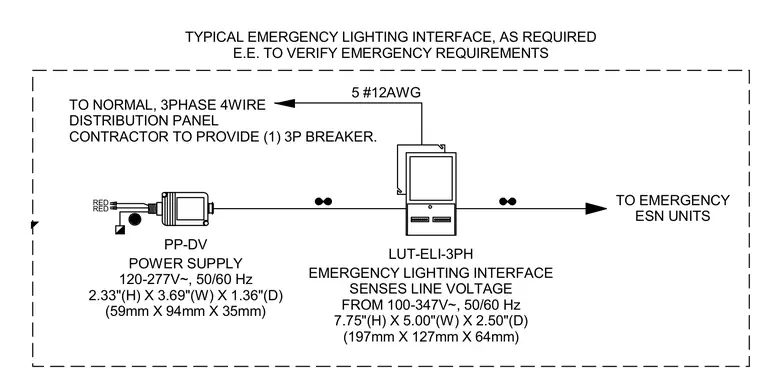

TO NORMAL, 3PHASE 4WIRE DISTRIBUTION PANEL CONTRACTOR TO PROVIDE (1) 3P BREAKER. 5 #12AWG RED RED PP-DV LUT-ELI-3PH POWER SUPPLY 120-277V~, 50/60 Hz 2.33"(H) X 3.69"(W) X 1.36"(D) (59mm X 94mm X 35mm) EMERGENCY LIGHTING INTERFACE SENSES LINE VOLTAGE FROM 100-347V~, 50/60 Hz 7.75"(H) X 5.00"(W) X 2.50"(D) (197mm X 127mm X 64mm) TO EMERGENCY ESN UNITS TYPICAL EMERGENCY LIGHTING INTERFACE, AS REQUIRED E.E. TO VERIFY EMERGENCY REQUIREMENTS
