A pole-mount back box attaches to the vertical pole using stainless banding clamps to support the security camera assembly. A continuous raceway runs to the pole base, terminating inside the conduit back box at the camera and inside the pole access point at the base of the pole within six inches of the underground stub.

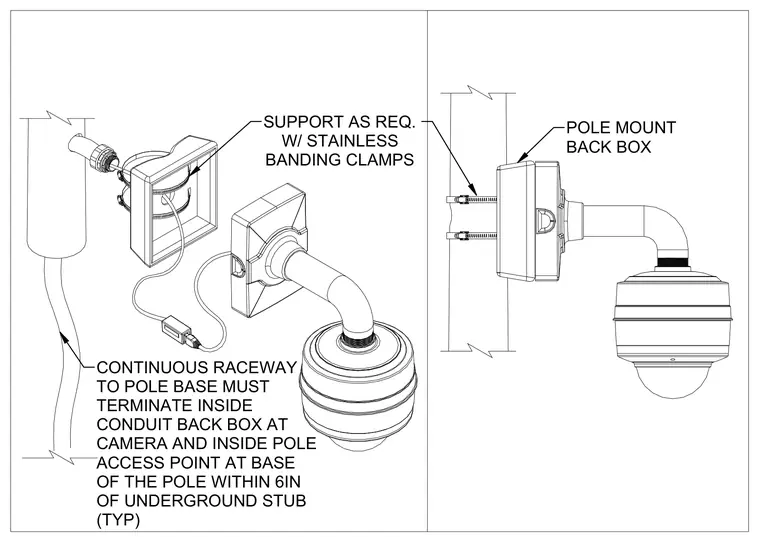

SUPPORT AS REQ. W/ STAINLESS BANDING CLAMPS CONTINUOUS RACEWAY TO POLE BASE MUST TERMINATE INSIDE CONDUIT BACK BOX AT CAMERA AND INSIDE POLE ACCESS POINT AT BASE OF THE POLE WITHIN 6IN OF UNDERGROUND STUB (TYP) POLE MOUNT BACK BOX
