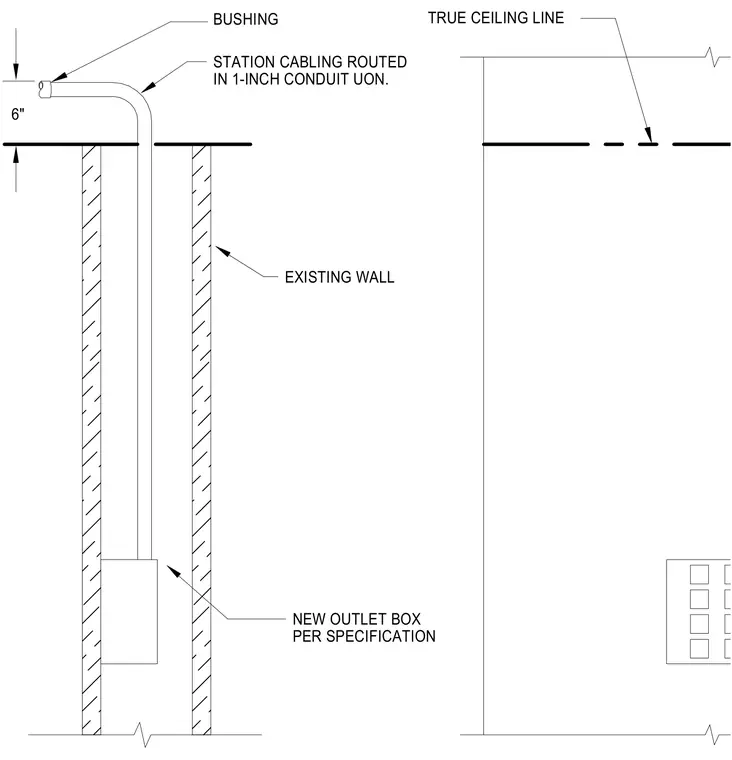

Station cabling is routed within a one-inch conduit extending down from six inches above the true ceiling line into an existing wall cavity. The conduit terminates with a bushing at the upper opening and connects to a new outlet box per specification mounted flush within the wall.
TRUE CEILING LINE STATION CABLING ROUTED 6" NEW OUTLET BOX PER SPECIFICATION EXISTING WALL IN 1-INCH CONDUIT UON. BUSHING
