Motor Operated Valve Isolation Wiring Diagram

Materials

About this detail

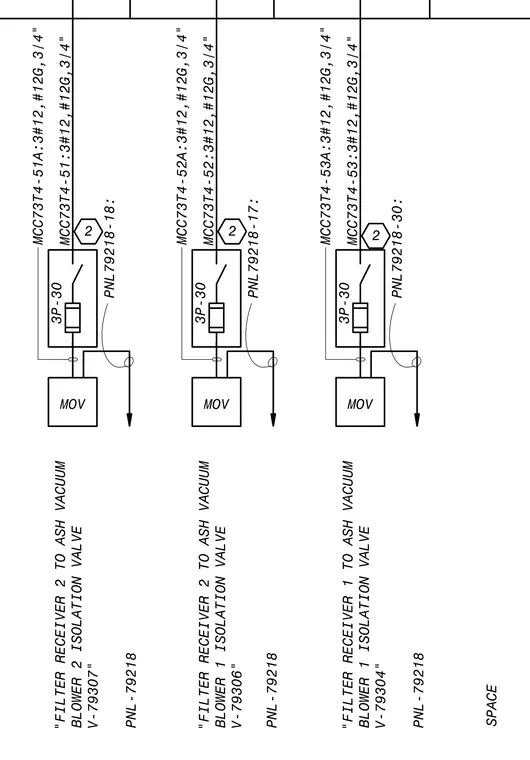

Electrical control schematic showing motor operated valve connections for filter receiver and ash vacuum blower isolation valves V-79304, V-79306, and V-79307. The circuits utilize motor control center feeds from MCC73T4 with three number 12 conductors in three-quarter inch conduits. Each motor operated valve circuit includes a three-pole 30-amp breaker and interfaces with panel PNL-79218.
