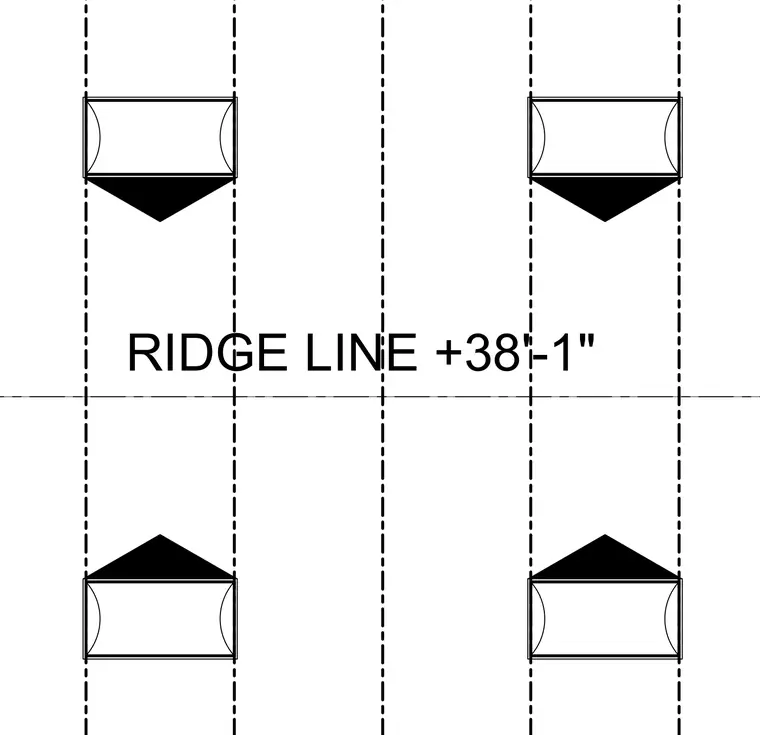

A roof ridge line is established at elevation plus 38 feet 1 inch with vertical alignment grid lines and symmetrical roof components. The layout indicates dashed grid intersections with mounting or penetration symbols arranged uniformly across the ridge axis.
