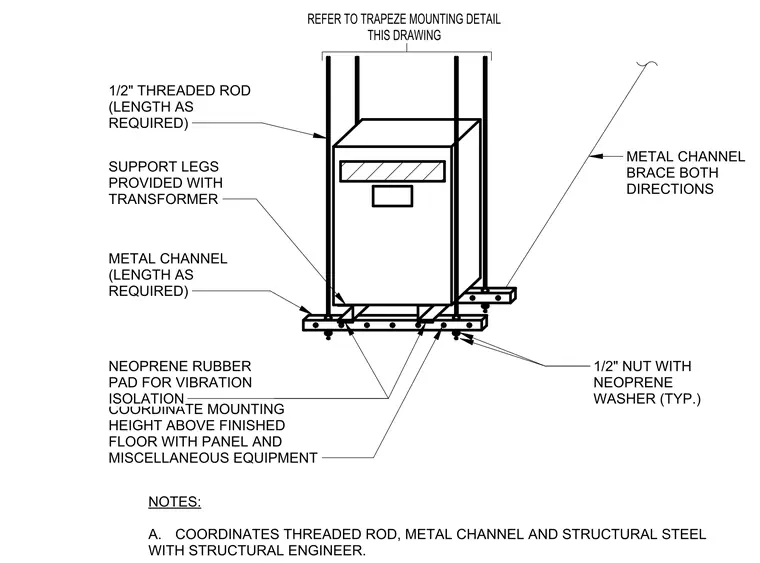

This transformer trapeze mounting assembly suspends equipment using one-half-inch threaded rods of required length secured with one-half-inch nuts and neoprene washers typically. The transformer rests on provided support legs set atop metal channel members of required length. Neoprene rubber pads are positioned beneath the legs for vibration isolation. Metal channel braces extend in both directions for lateral stability. Mounting height above the finished floor must be coordinated with the panel and miscellaneous equipment, and threaded rods, metal channels, and structural steel must be coordinated with the structural engineer.
REFER TO TRAPEZE MOUNTING DETAIL THIS DRAWING 1/2" THREADED ROD (LENGTH AS REQUIRED) SUPPORT LEGS PROVIDED WITH TRANSFORMER METAL CHANNEL (LENGTH AS REQUIRED) 1/2" NUT WITH NEOPRENE WASHER (TYP.) COORDINATE MOUNTING HEIGHT ABOVE FINISHED FLOOR WITH PANEL AND MISCELLANEOUS EQUIPMENT NEOPRENE RUBBER PAD FOR VIBRATION ISOLATION METAL CHANNEL BRACE BOTH DIRECTIONS NOTES: A. COORDINATES THREADED ROD, METAL CHANNEL AND STRUCTURAL STEEL WITH STRUCTURAL ENGINEER.
