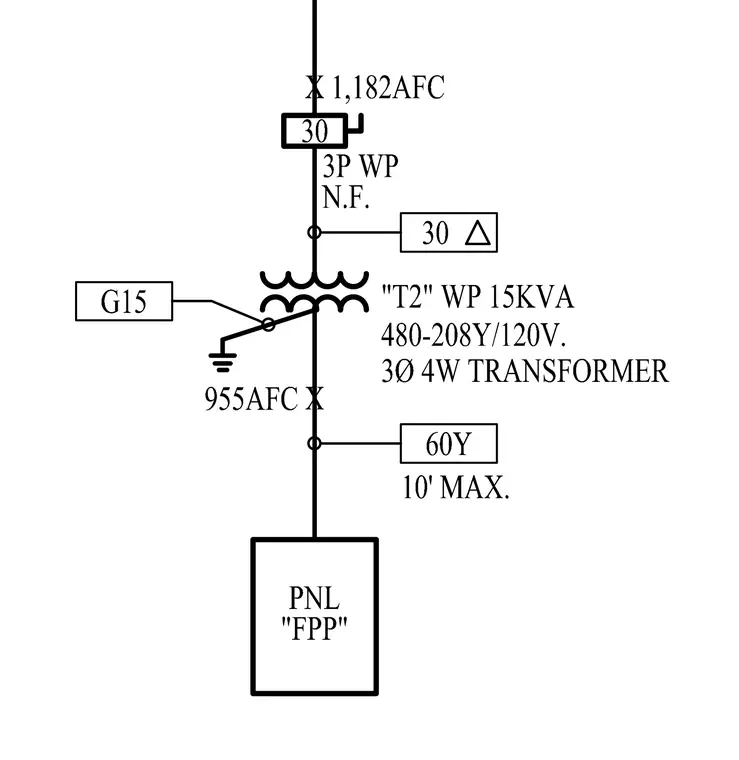

A thirty amp three-pole weatherproof non-fused disconnect connects upstream with an available fault current of one thousand one hundred eighty-two amps. A T2 weatherproof fifteen kilovolt-ampere transformer steps down voltage from four hundred eighty to two hundred eight y over one hundred twenty volts in a three-phase four-wire configuration. A grounding conductor labeled G15 ties into the system with an available fault current of nine hundred fifty-five amps. The secondary feeds panel FPP through a sixty amp overcurrent protection device restricted to a ten foot maximum length.
