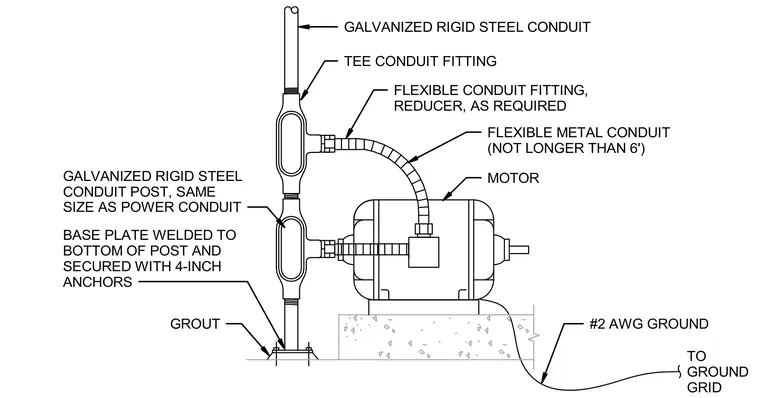

A galvanized rigid steel conduit post extends upward, featuring a tee conduit fitting and a base plate welded to the bottom of the post and secured with four-inch anchors over grout. A flexible metal conduit, not longer than six feet, connects via flexible conduit fittings and a reducer from the tee fitting to the motor. A number two AWG ground wire runs from the motor to the ground grid.
. . . . . .. . . . . . . . . . . . . . GROUT MOTOR TEE CONDUIT FITTING #2 AWG GROUND TO GROUND GRID BASE PLATE WELDED TO BOTTOM OF POST AND SECURED WITH 4-INCH ANCHORS GALVANIZED RIGID STEEL CONDUIT POST, SAME SIZE AS POWER CONDUIT GALVANIZED RIGID STEEL CONDUIT FLEXIBLE CONDUIT FITTING, REDUCER, AS REQUIRED FLEXIBLE METAL CONDUIT (NOT LONGER THAN 6')
