Electrical · E-R28GF

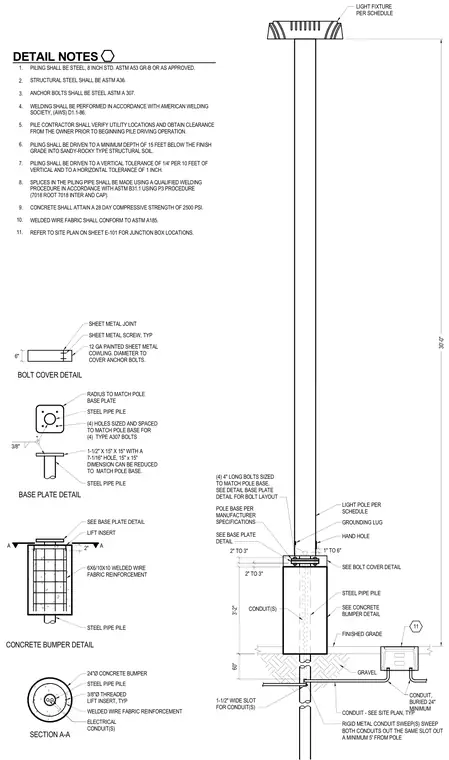

Light Pole Base and Concrete Bumper Detail

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Foundations / Footings Drainage Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Welded Connection Bolted Connection

About this detail

A light pole foundation is anchored to a steel pipe pile and encased in a twenty-four-inch diameter concrete bumper reinforced with welded wire fabric. The assembly incorporates an eight-inch standard steel pipe pile driven to a minimum depth of fifteen feet below finished grade into sandy-rocky soil. Electrical conduits sweep through a wide slot in the pile foundation to connect with buried runs. The light pole base plate secures to four anchor bolts sized to match the pole manufacturer specifications, while a twelve-gauge painted sheet metal cowling covers the anchor bolt assembly.

PILING SHALL BE STEEL, 8 INCH STD. ASTM A53 GR-B OR AS APPROVED. STRUCTURAL STEEL SHALL BE ASTM A36. WELDING SHALL BE PERFORMED IN ACCORDANCE WITH AMERICAN WELDING SOCIETY, (AWS) D1.1-86. PILE CONTRACTOR SHALL VERIFY UTILITY LOCATIONS AND OBTAIN CLEARANCE FROM THE OWNER PRIOR TO BEGINNING PILE DRIVING OPERATION. PILING SHALL BE DRIVEN TO A MINIMUM DEPTH OF 15 FEET BELOW THE FINISH GRADE INTO SANDY-ROCKY TYPE STRUCTURAL SOIL. PILING SHALL BE DRIVEN TO A VERTICAL TOLERANCE OF 1/4' PER 10 FEET OF VERTICAL AND TO A HORIZONTAL TOLERANCE OF 1 INCH. SPLICES IN THE PILING PIPE SHALL BE MADE USING A QUALIFIED WELDING PROCEDURE IN ACCORDANCE WITH ASTM B31.1 USING P3 PROCEDURE (7018 ROOT 7018 INTER AND CAP). CONCRETE SHALL ATTAIN A 28 DAY COMPRESSIVE STRENGTH OF 2500 PSI. WELDED WIRE FABRIC SHALL CONFORM TO ASTM A185. REFER TO SITE PLAN ON SHEET E-101 FOR JUNCTION BOX LOCATIONS. ANCHOR BOLTS SHALL BE STEEL ASTM A 307. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 2" 3'-2" 2" TO 3" 2" TO 3" 60" RIGID METAL CONDUIT SWEEP(S) SWEEP BOTH CONDUITS OUT THE SAME SLOT OUT A MINIMUM 5' FROM POLE CONDUIT - SEE SITE PLAN, TYP SEE BASE PLATE DETAIL SEE BOLT COVER DETAIL SEE CONCRETE BUMPER DETAIL STEEL PIPE PILE 1" TO 6" HAND HOLE GROUNDING LUG LIGHT POLE PER SCHEDULE FINISHED GRADE LIGHT FIXTURE PER SCHEDULE GRAVEL 1-1/2" WIDE SLOT FOR CONDUIT(S) POLE BASE PER MANUFACTURER SPECIFICATIONS (4) 4" LONG BOLTS SIZED TO MATCH POLE BASE. SEE DETAIL BASE PLATE DETAIL FOR BOLT LAYOUT CONDUIT(S) (4) HOLES SIZED AND SPACED TO MATCH POLE BASE FOR (4) TYPE A307 BOLTS RADIUS TO MATCH POLE BASE PLATE 1-1/2" X 15" X 15" WITH A 7-1/16" HOLE, 15" x 15" DIMENSION CAN BE REDUCED TO MATCH POLE BASE. STEEL PIPE PILE 12 GA PAINTED SHEET METAL COWLING. DIAMETER TO COVER ANCHOR BOLTS. SHEET METAL SCREW, TYP SHEET METAL JOINT LIFT INSERT SEE BASE PLATE DETAIL STEEL PIPE PILE 6X6/10X10 WELDED WIRE FABRIC REINFORCEMENT STEEL PIPE PILE STEEL PIPE PILE 24"Ø CONCRETE BUMPER 3/8"Ø THREADED LIFT INSERT, TYP WELDED WIRE FABRIC REINFORCEMENT ELECTRICAL CONDUIT(S) CONDUIT, BURIED 24" MINIMUM BASE PLATE DETAIL BOLT COVER DETAIL SECTION A-A CONCRETE BUMPER DETAIL 3/8" A A 6" 30'-0" 11 DETAIL NOTES
