Centrifuge equipment power and control connections comprise 120V alternating current power supplies from both uninterruptible power supply and non-uninterruptible power supply sources, along with an emergency stop switch designated as HS-74007. Flush water solenoid valves include waste line flush water solenoid valve SOV-74992, centrate flush water solenoid valve SOV-74892, cake hopper flush water solenoid valve SOV-74891, and centrifuge 4 lube unit flush water valve SOV-74054.

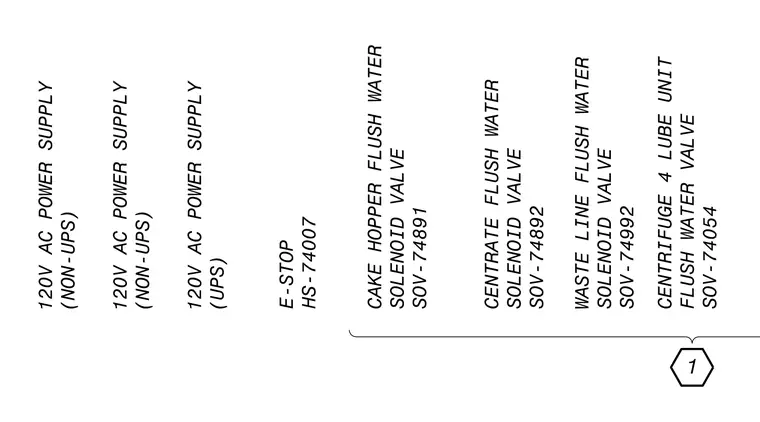

CENTRIFUGE 4 LUBE UNIT FLUSH WATER VALVE S0V-74054 0 WASTE LINE FLUSH WATER SOLENOID VALVE S0V-74992 CENT RATE FLUSH WATER SOLENOID VALVE S0V-74892 CAKE HOPPER FLUSH WATER SOLENOID VALVE S0V-74891 E-STOP HS-74007 120V AC POWER SUPPLY (UPS) 120V AC POWER SUPPLY (NON-UPS) 120V AC POWER SUPPLY (NON-UPS)
