Electrical · E-QY8VE

Lift Station Handhole Detail

Materials

Concrete Steel

Elements

Connections / Plates

Connections

Bolted Connection

About this detail

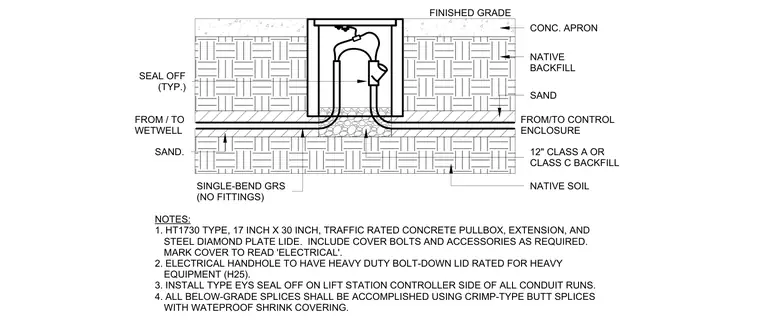

An HT1730 type seventeen by thirty inch traffic-rated concrete pullbox sits flush with finished grade inside a concrete apron, supported by native soil and a sand bedding layer. Conduit runs utilize single-bend galvanized rigid steel with no fittings, routed from the wetwell to the control enclosure. A type EYS seal-off is installed on the lift station controller side of all conduit runs. Below-grade splices use crimp-type butt splices with waterproof shrink covering, and the steel diamond plate lid is bolted down and rated for heavy equipment H25 loading.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
