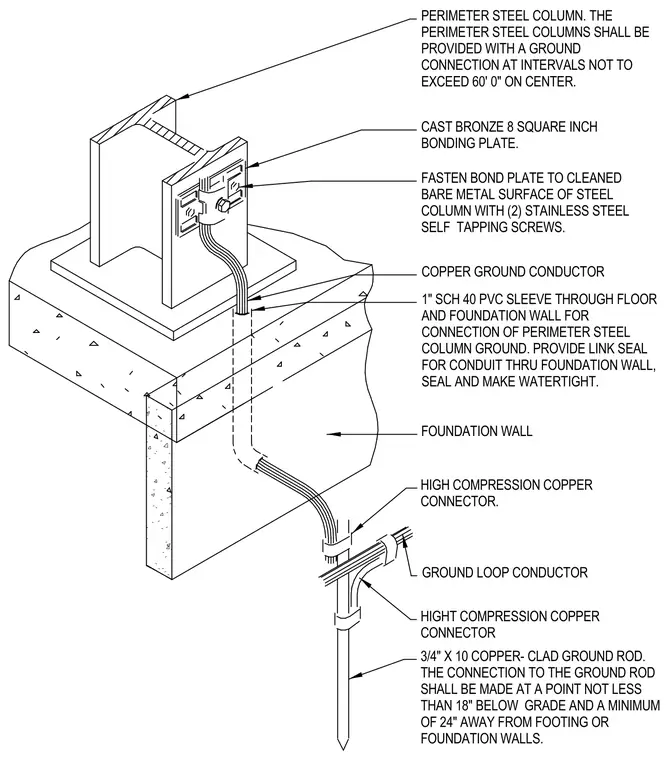

A cast bronze eight-square-inch bonding plate is fastened to a cleaned bare metal surface on the perimeter steel column using two stainless steel self-tapping screws. A copper ground conductor routes down from the bonding plate through a one-inch Schedule 40 PVC sleeve cast into the floor and foundation wall, sealed watertight with a link seal. Below grade, the conductor ties into a ground loop conductor using high-compression copper connectors. A three-quarter-inch by ten-foot copper-clad ground rod connects to the loop at a point not less than eighteen inches below grade and a minimum of twenty-four inches away from the footing or foundation walls.
FASTEN BOND PLATE TO CLEANED BARE METAL SURFACE OF STEEL COLUMN WITH (2) STAINLESS STEEL SELF TAPPING SCREWS. CAST BRONZE 8 SQUARE INCH BONDING PLATE. COPPER GROUND CONDUCTOR 1" SCH 40 PVC SLEEVE THROUGH FLOOR AND FOUNDATION WALL FOR CONNECTION OF PERIMETER STEEL COLUMN GROUND. PROVIDE LINK SEAL FOR CONDUIT THRU FOUNDATION WALL, SEAL AND MAKE WATERTIGHT. FOUNDATION WALL PERIMETER STEEL COLUMN. THE PERIMETER STEEL COLUMNS SHALL BE PROVIDED WITH A GROUND CONNECTION AT INTERVALS NOT TO EXCEED 60' 0" ON CENTER. HIGH COMPRESSION COPPER CONNECTOR. GROUND LOOP CONDUCTOR HIGHT COMPRESSION COPPER CONNECTOR 3/4" X 10 COPPER- CLAD GROUND ROD. THE CONNECTION TO THE GROUND ROD SHALL BE MADE AT A POINT NOT LESS THAN 18" BELOW GRADE AND A MINIMUM OF 24" AWAY FROM FOOTING OR FOUNDATION WALLS.
