Emergency Bodine Transfer Switch Wiring Detail

Elements

About this detail

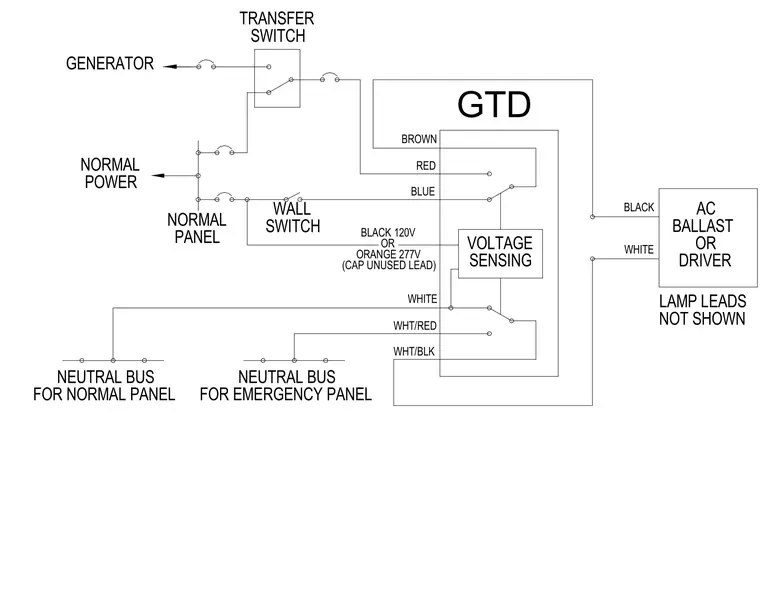

Wiring connections for a Bodine generator transfer device connected between a normal power panel, emergency transfer switch, and an AC ballast or driver. The generator power routes through the transfer switch to the generator terminal, while normal power feeds from the normal panel through a wall switch to the voltage sensing unit with black 120V or orange 277V leads, capping any unused leads. The device incorporates brown, red, and blue wire connections from the transfer switch and voltage sensing circuits, alongside white, white-with-red, and white-with-black neutral leads connecting to the respective neutral buses for the normal and emergency panels. Lamp leads for the AC ballast or driver remain unshown while black and white output leads connect the driver to the transfer device.
