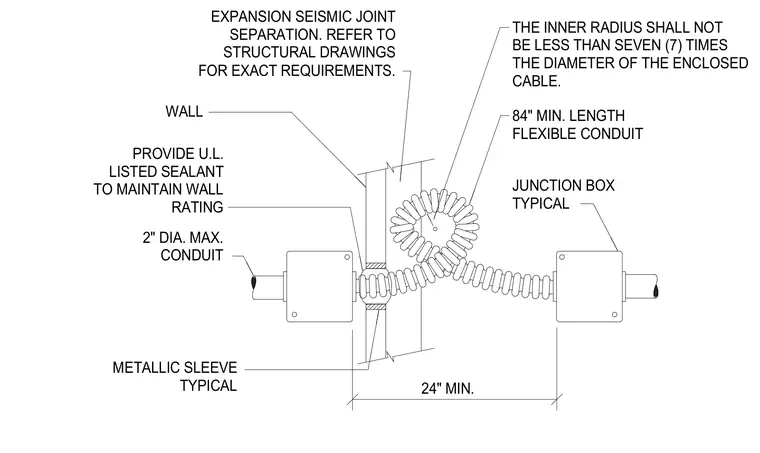

Electrical conduit crosses a wall expansion seismic joint using a minimum eighty-four inch length of flexible conduit to accommodate movement. A typical metallic sleeve with a maximum two-inch diameter penetrates the wall, sealed with an Underwriters Laboratories listed sealant to maintain the wall rating. Typical junction boxes are positioned on either side of the wall with a twenty-four inch minimum spacing. The inner radius of the flexible cable must be at least seven times the diameter of the enclosed cable.
TYPICAL JUNCTION BOX FLEXIBLE CONDUIT 84" MIN. LENGTH CABLE. THE DIAMETER OF THE ENCLOSED BE LESS THAN SEVEN (7) TIMES THE INNER RADIUS SHALL NOT METALLIC SLEEVE TYPICAL 2" DIA. MAX. CONDUIT PROVIDE U.L. LISTED SEALANT TO MAINTAIN WALL RATING WALL EXPANSION SEISMIC JOINT SEPARATION. REFER TO STRUCTURAL DRAWINGS FOR EXACT REQUIREMENTS. 24" MIN.
