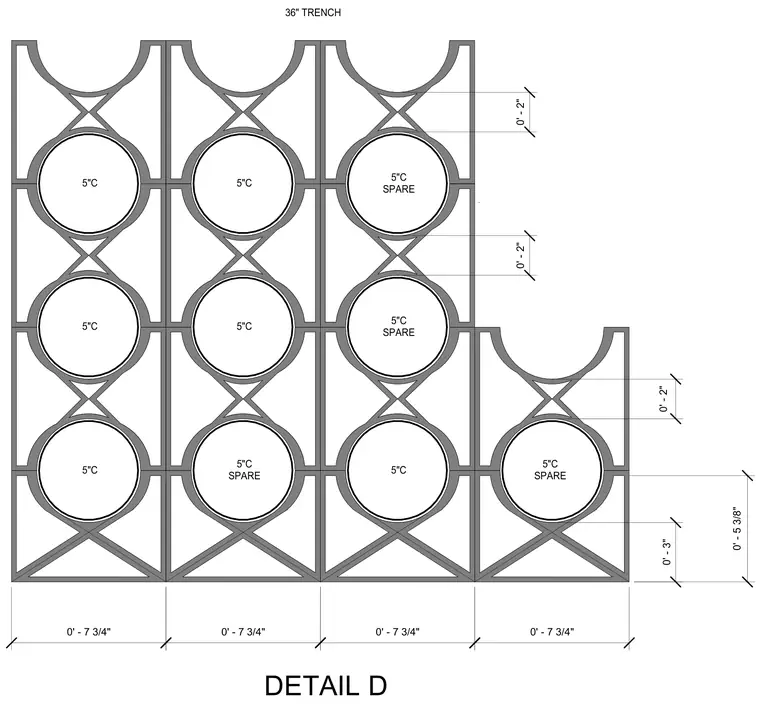

An electrical trench layout details a 36-inch trench containing multiple five-inch conduits, including active and spare runs. Conduits are spaced with vertical clearances of 0'-2" and 0'-3", and horizontal widths of 0'-7 3/4" between centers. Total vertical dimensioning reaches 0'-5 3/8" for lower framing layers.
0' - 7 3/4" 0' - 3" 0' - 2" 0' - 5 3/8" 0' - 7 3/4" 0' - 7 3/4" 0' - 7 3/4" 0' - 2" 0' - 2" DETAIL D 5"C 5"C SPARE 5"C SPARE 5"C 5"C 5"C 5"C 5"C 5"C SPARE 5"C SPARE 36" TRENCH
