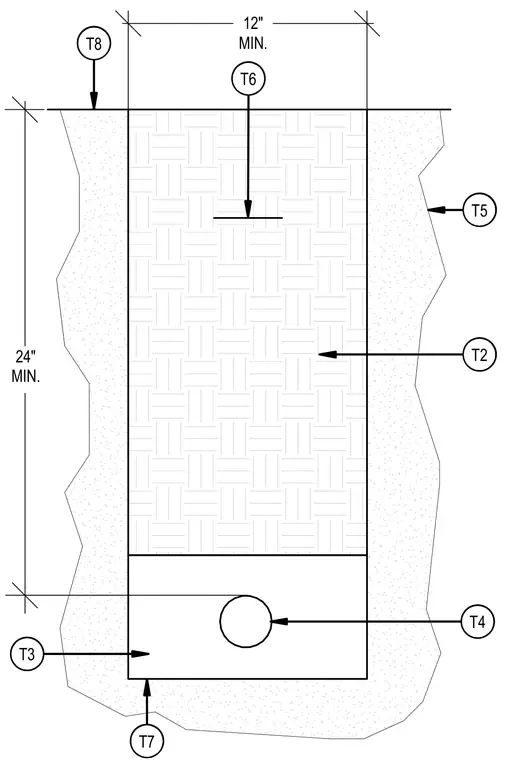

An underground electrical trench requires a minimum width of twelve inches and a minimum depth of twenty-four inches below finished grade. The conduit is bedded at the base of the trench within the surrounding earth.
12" MIN. 24" MIN. T8 T6 T5 T2 T7 T4 T3
