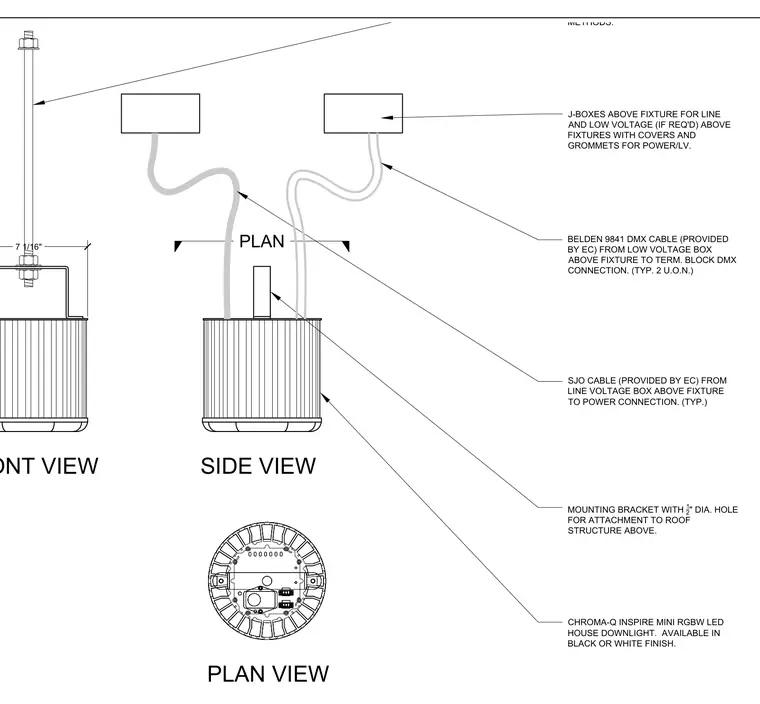

The Chroma-Q Inspire Mini RGBW LED house downlight features a mounting bracket with a one-half-inch diameter hole for attachment to the roof structure above. An SJO cable provided by the electrical contractor runs from the line voltage box above the fixture to the power connection. A Belden 9841 DMX cable provided by the electrical contractor runs from the low voltage box above the fixture to the terminal block DMX connection. Junction boxes above the fixture accommodate line and low voltage connections with covers and grommets for power and low voltage methods.
CHROMA-Q INSPIRE MINI RGBW LED HOUSE DOWNLIGHT. AVAILABLE IN BLACK OR WHITE FINISH. FRONT VIEW SIDE VIEW PLAN VIEW PLAN MOUNTING BRACKET WITH 1 2 " DIA. HOLE FOR ATTACHMENT TO ROOF STRUCTURE ABOVE. 7 1/16" SJO CABLE (PROVIDED BY EC) FROM LINE VOLTAGE BOX ABOVE FIXTURE TO POWER CONNECTION. (TYP.) BELDEN 9841 DMX CABLE (PROVIDED BY EC) FROM LOW VOLTAGE BOX ABOVE FIXTURE TO TERM. BLOCK DMX CONNECTION. (TYP. 2 U.O.N.) J-BOXES ABOVE FIXTURE FOR LINE AND LOW VOLTAGE (IF REQ'D) ABOVE FIXTURES WITH COVERS AND GROMMETS FOR POWER/LV. METHODS.
