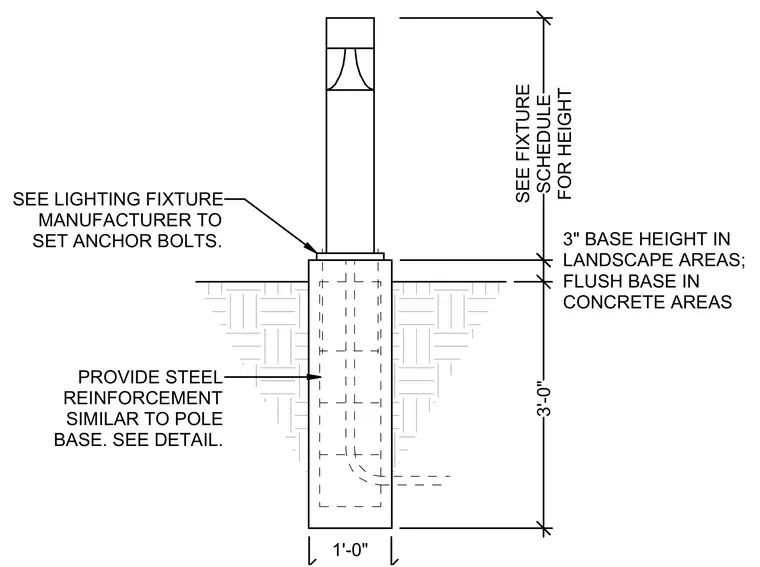

An exterior bollard light fixture is mounted to a reinforced concrete foundation using anchor bolts set according to the manufacturer specifications. The concrete base extends one foot in diameter and three feet deep, with internal steel reinforcement similar to a standard pole base. The base height varies by location, standing three inches above grade in landscape areas and flush in concrete paved areas.
3'-0" SEE FIXTURE SCHEDULE FOR HEIGHT 1'-0" SEE LIGHTING FIXTURE MANUFACTURER TO SET ANCHOR BOLTS. PROVIDE STEEL REINFORCEMENT SIMILAR TO POLE BASE. SEE DETAIL. 3" BASE HEIGHT IN LANDSCAPE AREAS; FLUSH BASE IN CONCRETE AREAS
