An underground electrical duct bank consists of PVC schedule 40 conduits encased in red-dyed concrete within an 18-inch wide trench. Conduits are organized with Underground Devices Wunpeece spacers placed five feet on center and held down with number 4 rebar driven into the ground between ducts every five feet. Number 4 continuous rebar runs longitudinally, accompanied by two number 2 copper ground wires embedded in the concrete encasement. The trench is set over undisturbed dirt with a 24-inch depth to the bottom and a minimum 3-foot cover below grade, topped with wheel-compacted backfill and patched to match existing grade.

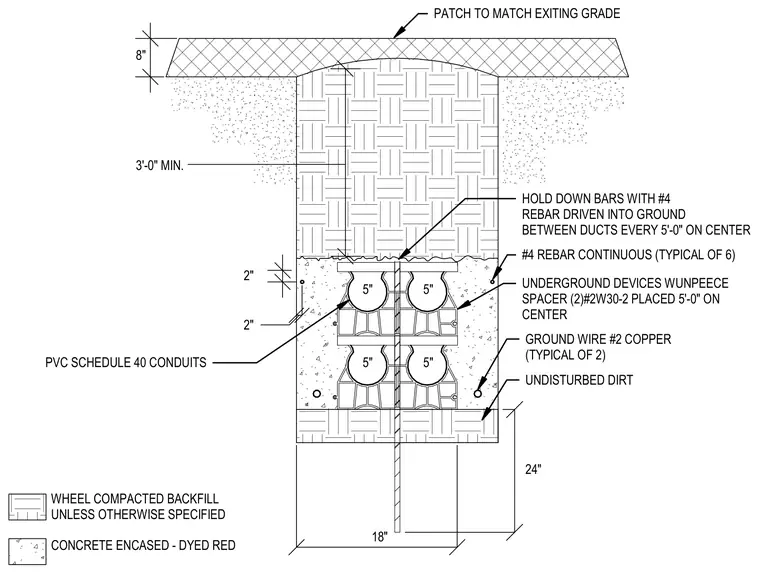

PATCH TO MATCH EXITING GRADE 18" 24" 2" 2" 3'-0" MIN. PVC SCHEDULE 40 CONDUITS CONCRETE ENCASED - DYED RED 8" WHEEL COMPACTED BACKFILL UNLESS OTHERWISE SPECIFIED HOLD DOWN BARS WITH #4 REBAR DRIVEN INTO GROUND BETWEEN DUCTS EVERY 5'-0" ON CENTER #4 REBAR CONTINUOUS (TYPICAL OF 6) UNDERGROUND DEVICES WUNPEECE SPACER (2)#2W30-2 PLACED 5'-0" ON CENTER GROUND WIRE #2 COPPER (TYPICAL OF 2) UNDISTURBED DIRT 5" 5" 5" 5"
