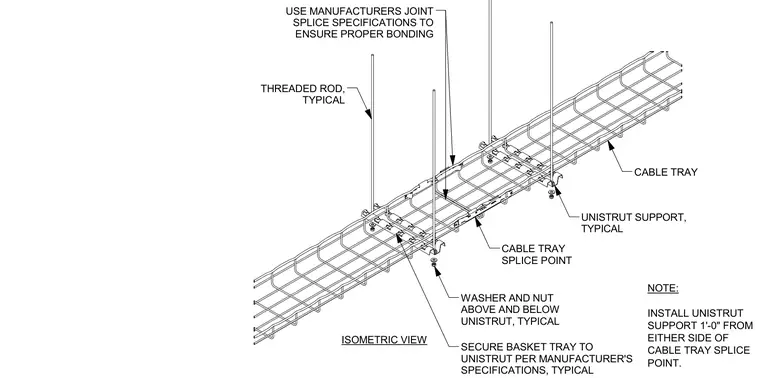

A cable tray splice point is supported by a Unistrut channel suspended from threaded rods. Washers and nuts secure the assembly above and below the Unistrut support. The Unistrut support must be installed one foot from either side of the cable tray splice point. Joint splices and basket tray attachments are secured per the manufacturer's specifications to ensure proper bonding.
CABLE TRAY SPLICE POINT ISOMETRIC VIEW CABLE TRAY UNISTRUT SUPPORT, TYPICAL WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL THREADED ROD, TYPICAL NOTE: INSTALL UNISTRUT SUPPORT 1'-0" FROM EITHER SIDE OF CABLE TRAY SPLICE POINT. USE MANUFACTURERS JOINT SPLICE SPECIFICATIONS TO ENSURE PROPER BONDING SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS, TYPICAL
