Electrical · E-QK8QB

Bus-A Cubicle Light Circuit

About this detail

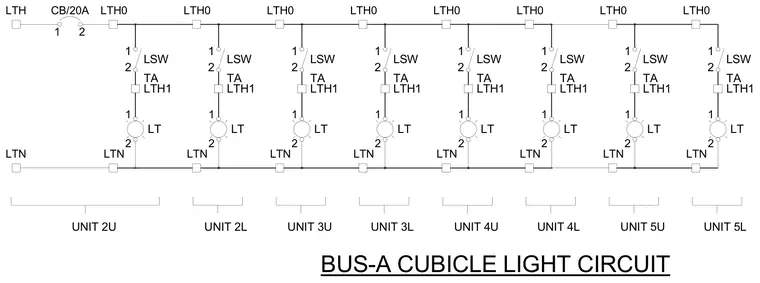

This electrical schematic details the Bus-A cubicle lighting circuit, originating from a 20-amp circuit breaker supplying power through terminal blocks and local switches to multiple lighting fixtures. The circuit branches across units 2U, 2L, 3U, 3L, 4U, 4L, 5U, and 5L with designated neutral and hot connections. Terminals and light fixtures are systematically wired in parallel configurations governed by standard circuit protection.
