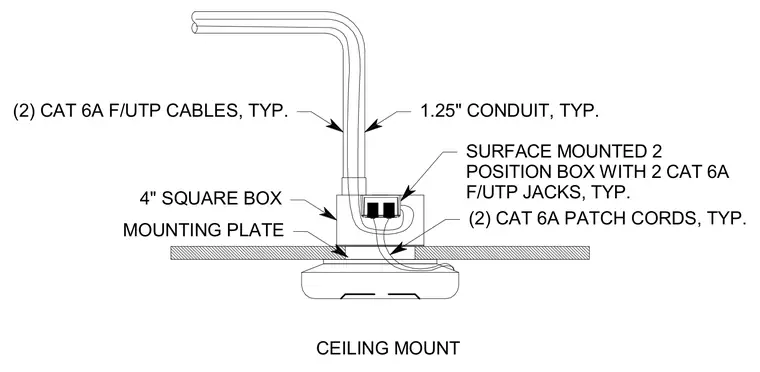

Two CAT 6A F/UTP cables route through a 1.25 inch ceiling mount conduit into a surface mounted two position box equipped with two CAT 6A F/UTP jacks. The box secures to a four inch square box mounting plate at the ceiling plane. Two CAT 6A patch cords extend from the jacks for device connection.
SURFACE MOUNTED 2 POSITION BOX WITH 2 CAT 6A F/UTP JACKS, TYP. (2) CAT 6A PATCH CORDS, TYP. CEILING MOUNT 1.25" CONDUIT, TYP. (2) CAT 6A F/UTP CABLES, TYP. 4" SQUARE BOX MOUNTING PLATE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
