Electrical conduit passing through a hazardous location floor slab requires a vertical explosion-proof sealing fitting installed on both ends of the conduit, even when routed into a non-hazardous location below. The sealing fitting is installed on a Type G conduit maintained at a minimum distance of four hundred sixty millimeters from the top of the floor slab.

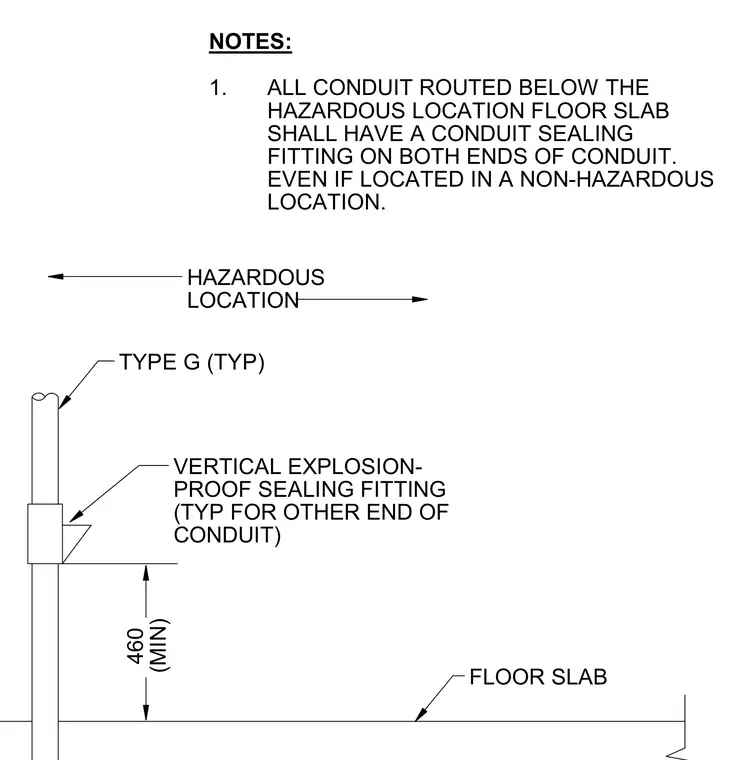

460 (MIN) TYPE G (TYP) VERTICAL EXPLOSION- PROOF SEALING FITTING (TYP FOR OTHER END OF CONDUIT) FLOOR SLAB HAZARDOUS LOCATION 1. NOTES: ALL CONDUIT ROUTED BELOW THE HAZARDOUS LOCATION FLOOR SLAB SHALL HAVE A CONDUIT SEALING FITTING ON BOTH ENDS OF CONDUIT. EVEN IF LOCATED IN A NON-HAZARDOUS LOCATION.
